For owners and technicians working with heavy machinery like the Case 650L dozer, modern diagnostic tools are the lifeline to machine health, performance, and uptime. The right scanner can mean the difference between a quick fix and costly, unexpected downtime. As equipment grows more complex, understanding your diagnostic options is crucial. This comprehensive guide breaks down the leading solutions— jPro scanner, DPA5 adapters, and CNH's official Electronic Service Tool (EST)—to help you make the smartest investment for your workshop and your machinery.
Gone are the days when troubleshooting a dozer relied solely on mechanical intuition. Today's machines like the Case 650L are governed by sophisticated networks of Electronic Control Units (ECUs) managing everything from engine timing and transmission shifts to hydraulic implement functions. Preventive maintenance, supported by advanced diagnostics, is key to predicting failures and scheduling repairs without disrupting your work calendar.
Diagnostic tools connect to the machine’s 9-pin data link connector, allowing you to "converse" with these ECUs. They can read and clear fault codes, monitor live sensor data, perform calibrations, and update software. The choice of tool directly impacts the depth, reliability, and safety of this conversation.
To understand the landscape, let's compare the three primary diagnostic pathways for CNH equipment.
| Feature | jPro Commercial (Multi-Brand) | China DPA5 Clone (Budget Adapter) | CNH EST + OEM Adapter (Factory Tool) |
|---|---|---|---|
| Core Purpose | Multi-brand, all-in-one diagnostics | Low-cost access to basic CNH diagnostics | CNH factory-level diagnostics and programming |
| Primary Use Case | Shops working on multiple brands (CAT, Deere, CNH, etc.) | Owner-operators or shops on a tight budget | CNH dealerships and master technicians |
| Key Advantage | Versatility, reliability, strong support | Very low initial purchase cost | Deepest level of access and control |
| Major Drawback | High initial and ongoing subscription cost | Unstable, risky, limited functionality | Extremely high cost; complex for casual use |
| Best For | Professional technicians prioritizing reliability | Basic code reading only (with high risk) | Technicians requiring full OEM programming access |
jPro, developed by Noregon, is considered the premier multi-brand diagnostic platform for heavy-duty and off-road equipment. For a shop that sees a mix of Case, John Deere, Caterpillar, and others, jPro consolidates everything into one robust tablet and software system.

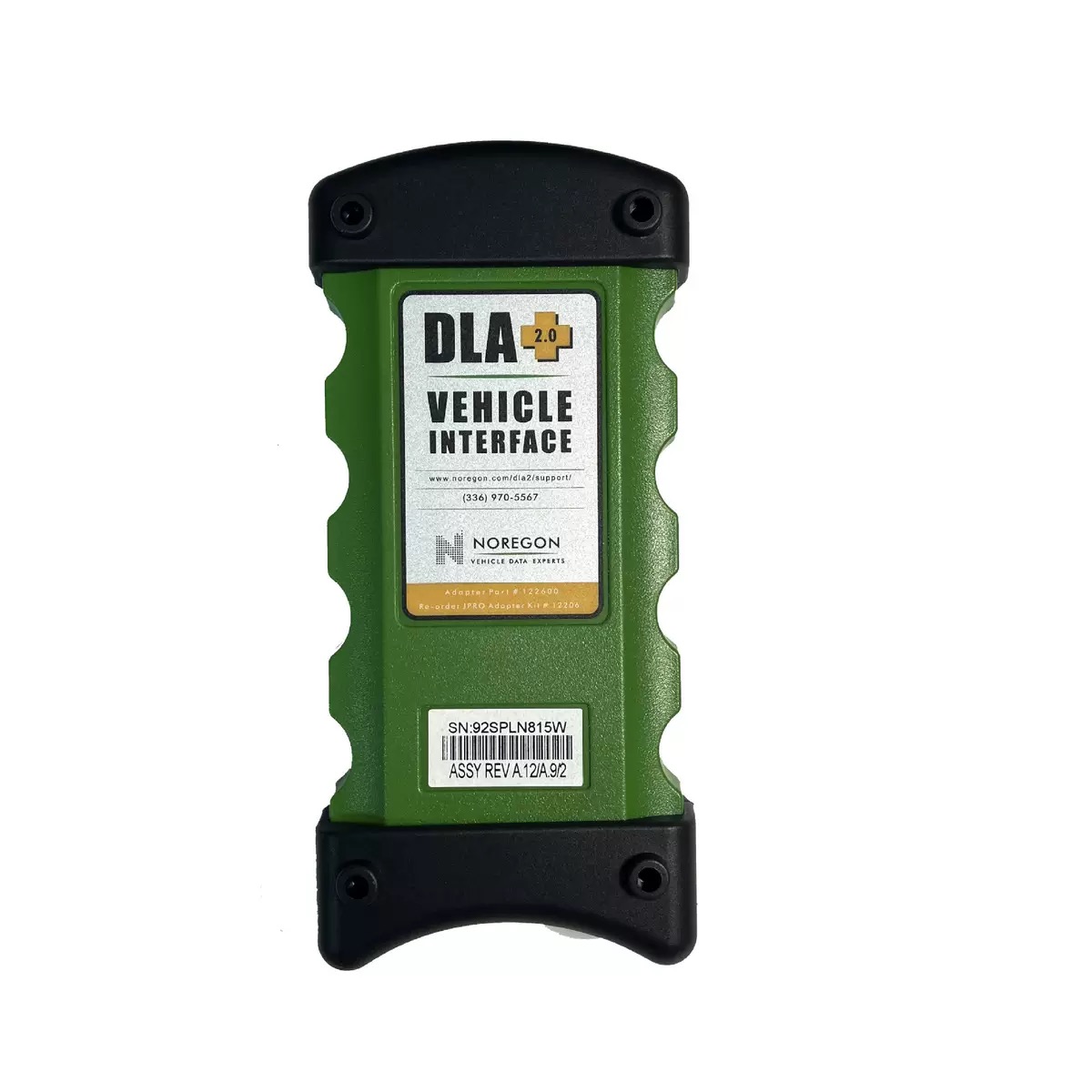

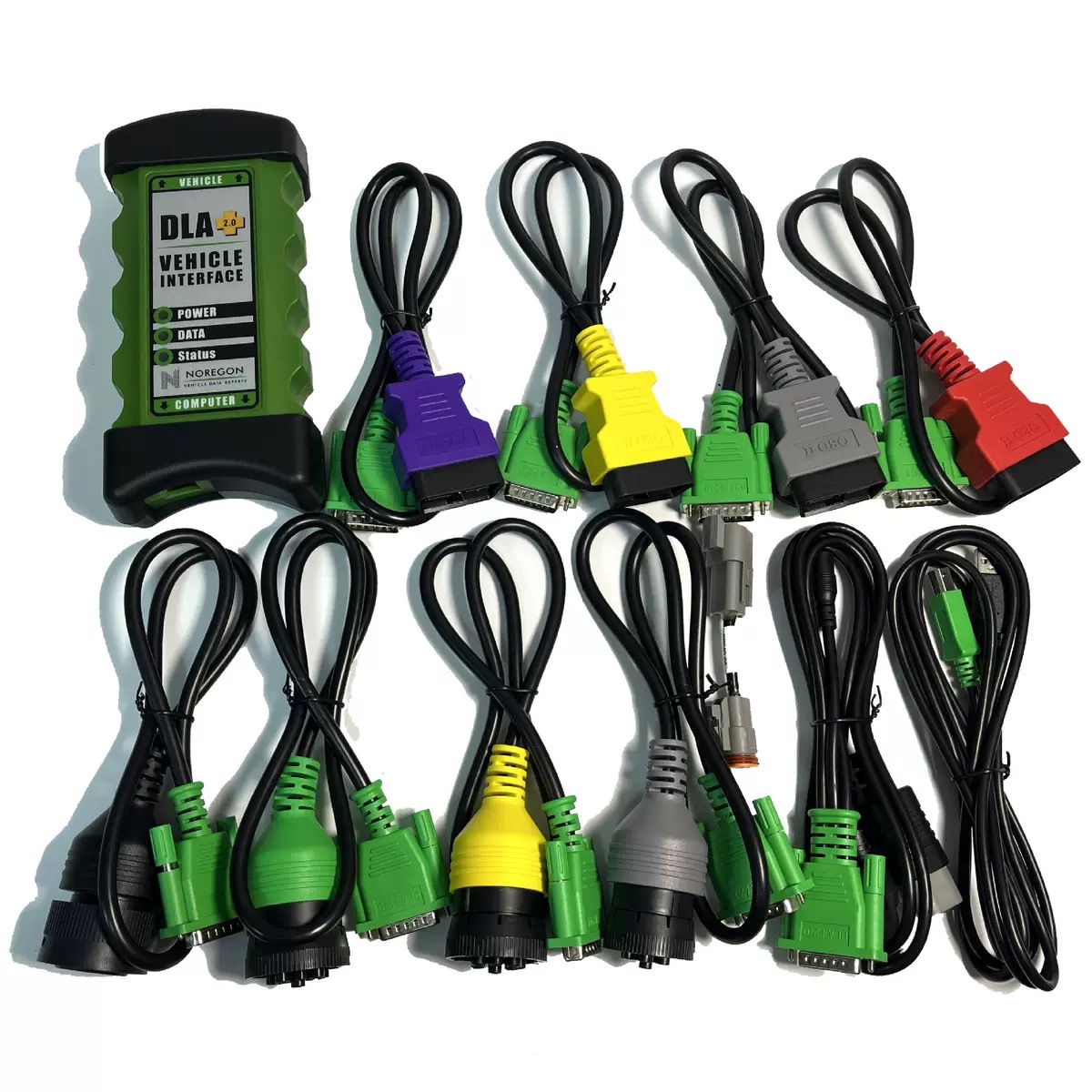

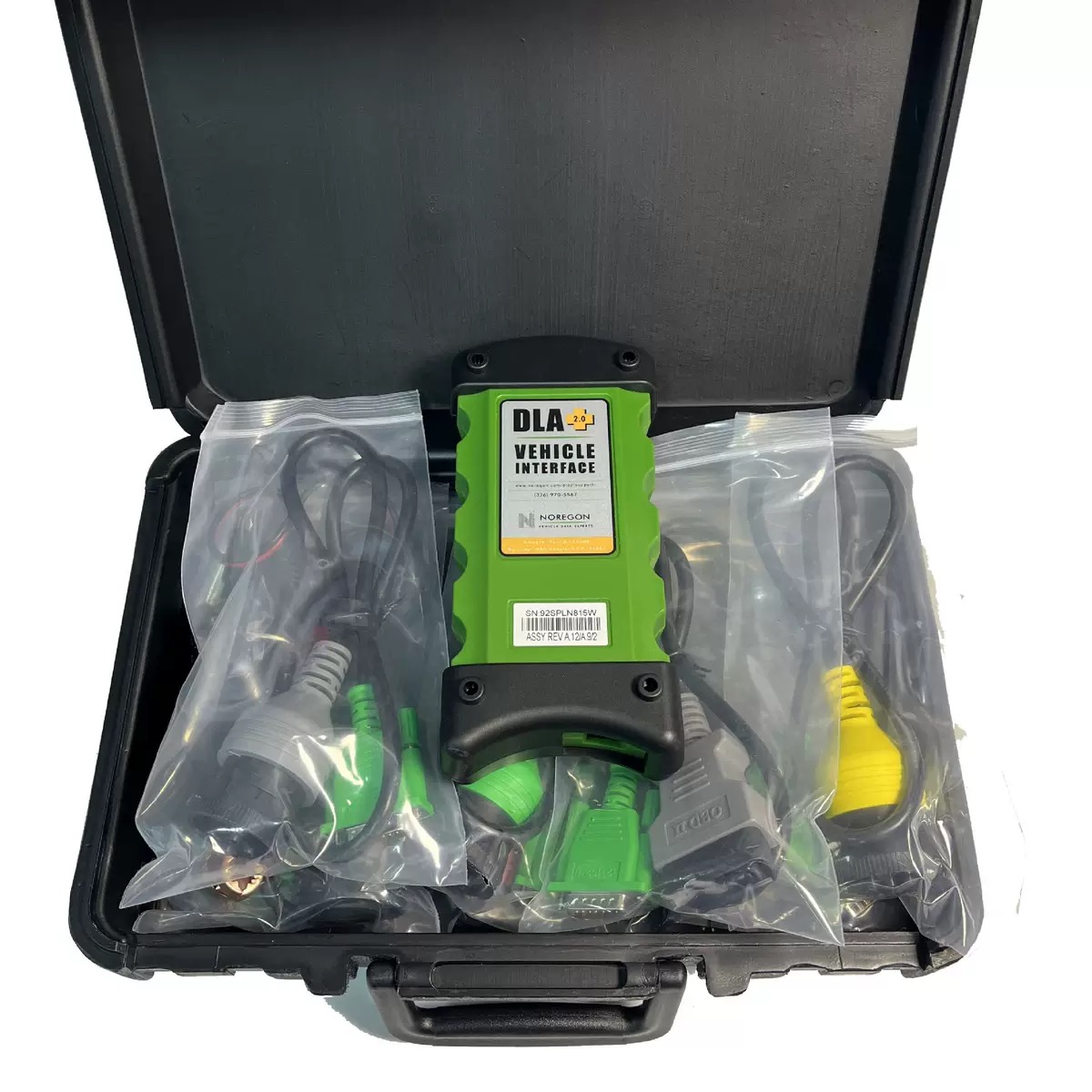

How it Works: You purchase the jPro hardware (like the JPRO DLA+ 2.0 adapter kit) and subscribe to the software bundles for the brands you service. For your Case 650L, you would activate the CNH vehicle pack.
Pros:
Reliability & Support: It's an official, supported product with regular updates and technical help.
Comprehensive Coverage: Offers strong functionality for diagnostics, live data, and common calibrations across many brands.
User-Friendly: The interface is designed for technician workflow, often with guided troubleshooting.
Cons:
Cost: The initial investment for the hardware and software subscriptions is significant.
Depth: While excellent for most repairs, it may not reach the ultra-deep, proprietary programming level of the factory tool in some edge cases.
Verdict: jPro is the top recommendation for any professional setting where uptime is critical and the budget supports a professional tool. It's a "buy once, cry once" solution that pays for itself in diagnostic confidence and saved time.
The DPA5 name refers to a communication adapter (like the 380002884) that acts as a bridge between a laptop and the machine's diagnostic port. It's designed to work with CNH's official EST software. However, the market is flooded with low-cost clones, primarily from China, which is where the danger lies.
How it Works: You acquire a clone DPA5 adapter and a copy of the CNH EST software (version 9.12 or newer). The setup involves installing drivers and the software on a Windows laptop.
The Stark Reality of Clones:
Technical Instability: Driver conflicts and communication dropouts are common. One moment it connects, the next it fails, mirroring the frustrations technicians have with other unstable hardware interfaces.
Functionality Limits: It may read basic fault codes and display some live data. However, critical functions like parameter resets, ECU calibrations, and especially firmware flashing are highly unreliable.
The Brick Risk: Attempting to flash an ECU with an unstable clone adapter is the single fastest way to "brick" a very expensive computer module, requiring dealership replacement. This risk alone makes the cost savings a false economy.
No Support: You are completely on your own with installation headaches and software errors.
Verdict: A China DPA5 clone is a high-risk gamble. It might suffice for an owner-operator who only wants to read engine fault codes and understands they must never attempt programming. For any professional or serious repair work, the risks far outweigh the low purchase price.
CNH EST is the official, proprietary software used by Case IH and New Holland dealerships. When paired with the genuine OEM adapter (such as a Nexiq USB-Link), it provides absolute, unimpeded access to every diagnostic and programming function engineered into the machine.
How it Works: CNH licenses the EST software and sells the compatible hardware interface to authorized dealers and sometimes to large customers.
Pros:
Cons:
Prohibitive Cost: The software license and genuine adapter cost thousands of dollars, placing it out of reach for most independent shops.
Complexity: The interface is built for factory-trained technicians and can be overwhelming for generalists.
Verdict: CNH EST is the ultimate tool but is realistically only an option for dealerships or very large fleets with dedicated CNH master technicians.
A real-world example highlights why tool choice matters. A 2015 Case 821F wheel loader presented with an intermittent loss of communication that occurred randomly over weeks.
The Challenge: The fault couldn't be reproduced on demand. A basic code reader might show a history of communication errors but offer no insight into the when or why.
The Advanced Diagnostic Approach: The technician used a professional-grade tool (like a jPro or scope) to perform a system scan when the machine was functioning. By monitoring the J1939 serial data network live (a function supported by advanced tools), they could watch for the moment communication dropped.
The Outcome: This live data monitoring allowed them to isolate the fault to a specific module or wiring harness issue that only appeared under certain conditions, leading to a precise fix. A limited tool would have left them guessing and replacing parts unnecessarily.
Beyond code readers, the most skilled technicians increasingly use automotive oscilloscopes, like the PicoScope, for heavy equipment diagnosis. These tools visualize electrical signals in real-time.
Why Use a Scope? They are indispensable for diagnosing intermittent faults, sensor issues, wiring problems, and complex hydraulic system commands (e.g., using a pressure transducer to view pump output).
Application: For example, a guided test in PicoScope software can help check the health of a Denox 2.2 system or perform a hydraulic flow test, going far beyond what a standard diagnostic scanner can achieve.
Synergy: A scope doesn't replace a scanner like jPro; it complements it. Together, they form a complete diagnostic arsenal.
Your decision should be guided by your role, budget, and risk tolerance.
For the Professional Fleet Manager or Independent Shop: Invest in jPro. Its reliability, multi-brand capability, and support will maximize your team's efficiency and protect your clients' valuable assets from diagnostic errors. The cost is justified as a core business investment.
For the Cost-Conscious Owner-Operator:
First, seek help. Pay a mobile technician with a jPro to run a full diagnostic. It's often cheaper than a wrong part.
If buying a tool is a must, understand that a China DPA5 is for information-gathering only. Use it to read codes and basic data. Consider it a digital gauge cluster, not a repair tool. Never, ever use it to program or flash an ECU.
Explore mid-range alternatives. Some reputable brands offer capable, CNH-specific tools that sit between a clone and jPro in price and functionality.
For the Dealership or Major Fleet: The official CNH EST is your required tool for warranty work, deep diagnostics, and ensuring full machine capability.
Diagnostic tools are a gateway to your machine's vital systems. While the upfront cost of a China DPA5 clone is tempting, the potential downstream costs of misdiagnosis, extended downtime, or a bricked ECU are astronomically higher.
For anyone whose livelihood depends on their Case 650L or similar equipment, the trusted, supported path of a professional tool like jPro is the only rational choice. It transforms diagnostics from a guessing game into a precise science, ensuring your dozer is available, productive, and profitable for years to come. Remember, the best diagnostic plan, as highlighted by manufacturers themselves, is one that increases machine availability and reduces unscheduled stops.
