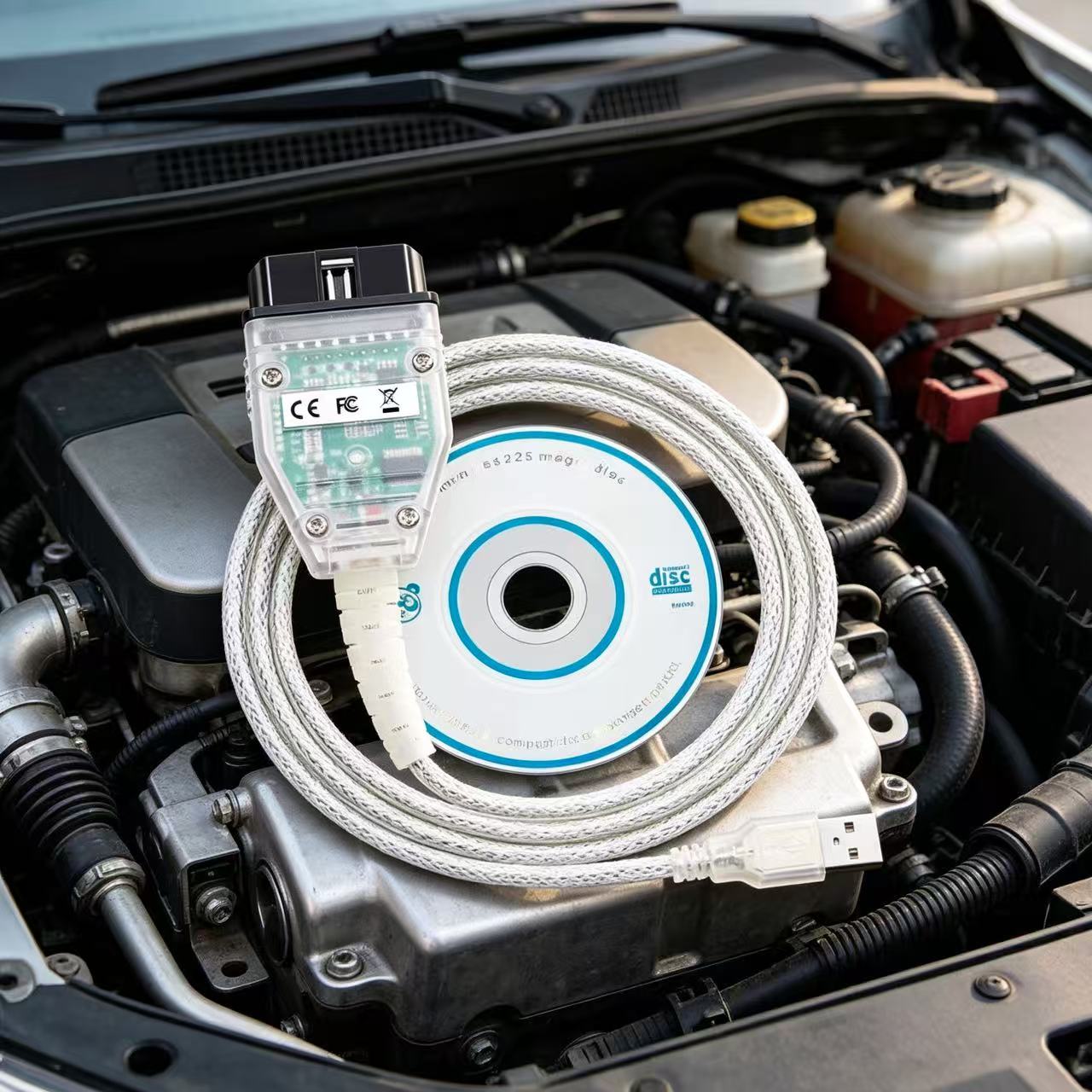

The MINI VCI 16-Pin Single Diagnostic Cable provides factory-level diagnostic capabilities for Toyota and Lexus vehicles at a fraction of the cost of traditional dealership tools. Engineered to work directly with Toyota TIS OEM software, this interface provides independent repair shops, technicians, and car enthusiasts with comprehensive diagnostic coverage.
| Parameter | Details |
| Software Version | Toyota TIS Techstream V18.00.08 |

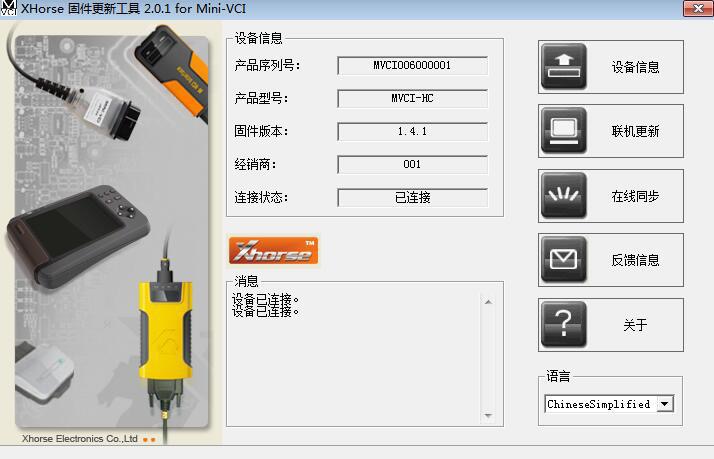

| Firmware Version | V1.4.1 |
| Connector | Standard OBD2 16-Pin |
| Recommended OS | Windows XP, Windows 7 (32-bit recommended), Windows 10 |
| Vehicle Coverage | Toyota & Lexus models from 1996 to present |
| Package Contents | 1x MINI VCI Cable, 1x Software/Driver CD |
Cost-Effective OEM Diagnostics: Delivers dealership-level software integration at roughly one-third the cost of high-end international diagnostic alternatives.
Full Protocol Integration: Native support for all required Toyota communication standards since 1996.

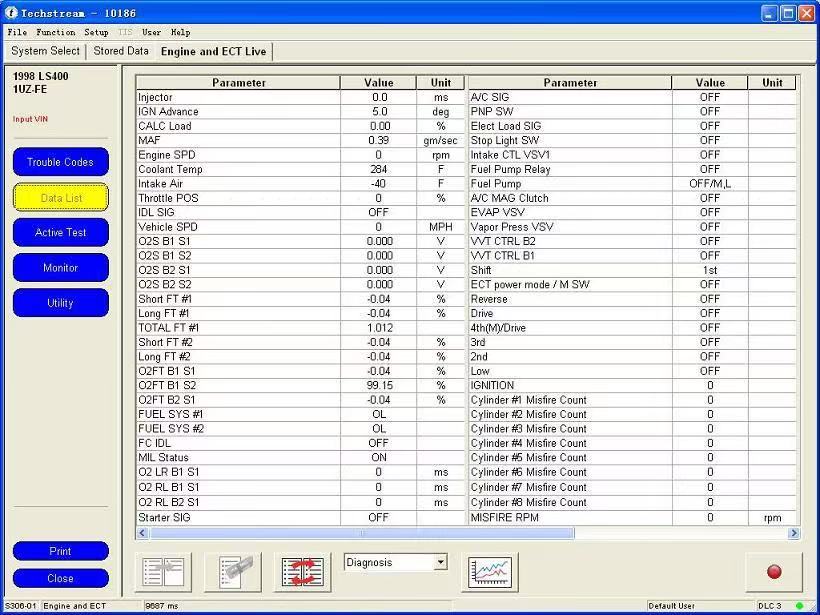

Direct ECU Access: Enables code reading, clearing, live data monitoring, and basic control module communication.
Supported Protocols:
K-Line ISO 9141 / KWP 2000 ISO 14230-4
SAE J1850 PWM / SAE J1850 VPW
CAN 2.0B ISO 11898 / CAN ISO 15765-4
16-Pin OBD2 Only: This package includes a standard 16-pin connector. Vehicles manufactured prior to 1996 or requiring an older 22-pin diagnostic port are not compatible.
Operating System Setup: For optimal stability during driver registration and software execution, use Windows XP or Windows 7 (32-bit).
Is the TIS Toyota MINI VCI cable compatible with macOS?
No. The software is designed natively for Windows operating systems (Windows XP and Windows 7 32-bit are recommended). Apple laptop users must run a Windows virtual machine or dual-boot system to install the drivers and diagnostic software successfully.
Why will the adapter not communicate with a 1994 Toyota Camry?
The MINI VCI cable is specifically designed for 16-pin OBD2 vehicles produced after 1996. Pre-1996 models use different diagnostic protocols and physical connector shapes.
What should I do if K-Line, L-Line, or CAN BUS show red status on older Land Cruiser or Prado models?
If the status indicators show red and only recognize partial ECUs on older models (such as the FZJ80 or 5VZ-FE Prado), the cable's firmware protocol timing may not be fully compatible with that specific market variant's ECU architecture.
For wholesale inquiries, technical support, or bulk order shipping, contact our sales engineering team directly.
