Discover how to use John Deere Service Advisor and EDL (Electronic Data Link) with
the 2004 John Deere 120C excavator. Learn about hardware requirements, diagnostic capabilities, and
system compatibility to reduce downtime.
For owners and fleet managers of the John Deere 120C excavator, maintaining peak performance and minimizing downtime is a top priority. As these machines age, traditional troubleshooting can be time-consuming. This is where modern diagnostic tools like the Electronic Data Link (EDL) and Service Advisor software become indispensable assets for independent shops and owner-operators.
Is the 2004 John Deere 120C Compatible?
The short answer is yes. The 2004 John Deere 120C is fully compatible with the John Deere diagnostic ecosystem. This machine features the reliable PowerTechTM 4.5L (4045H) engine and the PowerwizeTM II control system, both of which communicate through a standardized digital protocol accessible via the EDL.
Required Hardware & Software Components

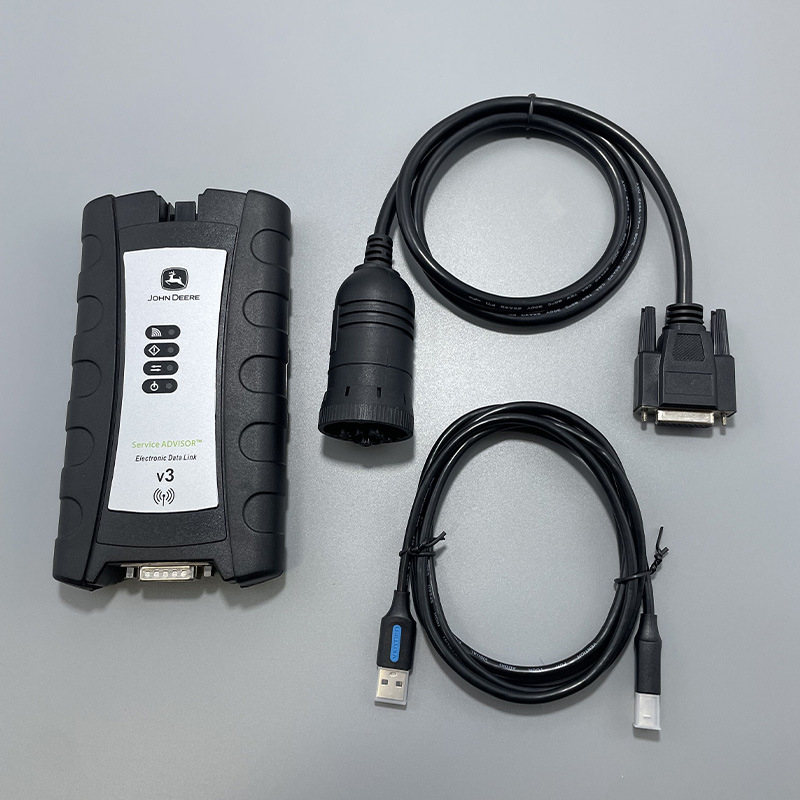

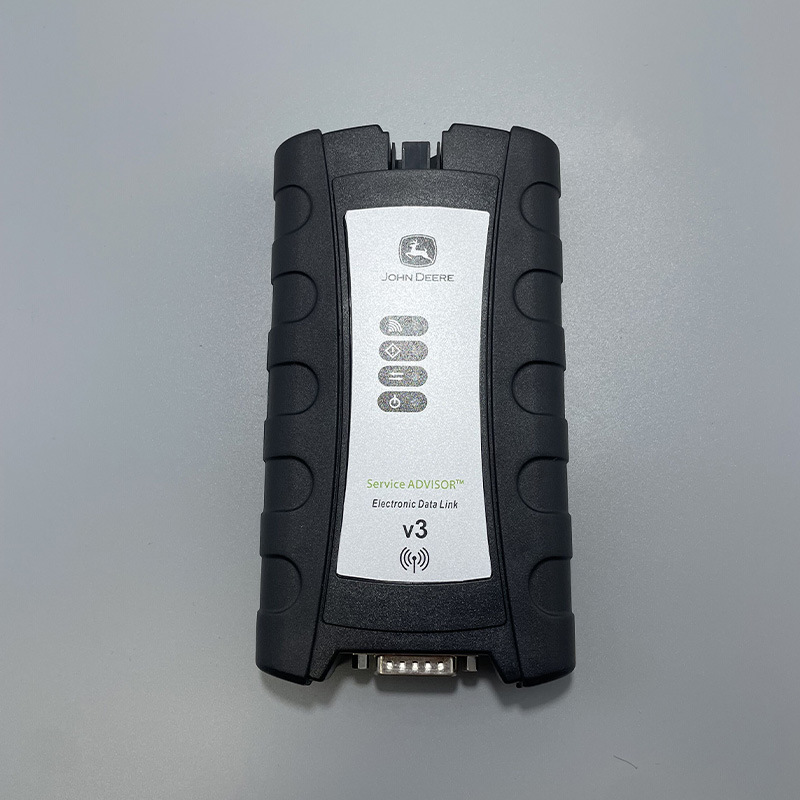

Electronic Data Link (EDL) v3: While the older v2 works, the
John Deere EDL v3 is the current industry standard, offering faster data processing and improved durability.
Service Advisor CF (Construction & Forestry): You specifically need the "CF" version of the software. Version 5.3 or higher is recommended to ensure full database coverage for legacy 120C components.

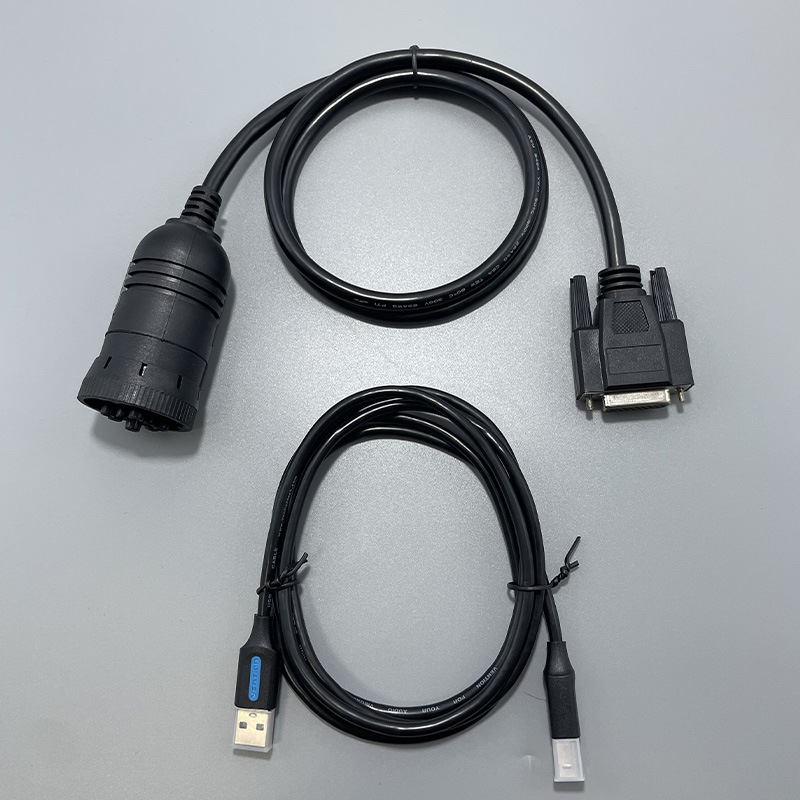

9-Pin Deutsch Connector: The 120C uses a standard round 9-pin diagnostic port, typically located behind the operator's seat or near the fuse panel.
Core Diagnostic Capabilities
Using Service Advisor on a 120C goes far beyond just reading "check engine" lights. It provides a deep dive into the machine's "brain," allowing for:
1. Real-Time Data Monitoring
Monitor hydraulic pump pressures, engine coolant temperatures, and battery voltage in real- time while the machine is under load. This is critical for identifying intermittent faults that don't throw a permanent code.
2. Advanced Calibration & Testing
Perform essential system tests such as cylinder cutouts (to identify fuel injector issues) and hydraulic relief valve checks. You can also calibrate the electronic controllers to ensure the engine and pumps are working in perfect harmony.
3. Full Technical Library Access
One of the biggest advantages of Service Advisor is the integration of technical manuals. Instead of flipping through greasy paper books, you get instant access to wiring diagrams, component locations, and step-by-step repair instructions linked directly to the fault codes you find.
Maximizing ROI with Independent Diagnostics
By investing in an John Deere EDL and Service Advisor setup for your 120C, you gain the "Right to Repair." You can bypass long dealer wait times and expensive call-out fees. For a machine from 2004, having the ability to pinpoint an electrical sensor failure versus a major mechanical breakdown can save thousands of dollars in unnecessary parts replacement.
