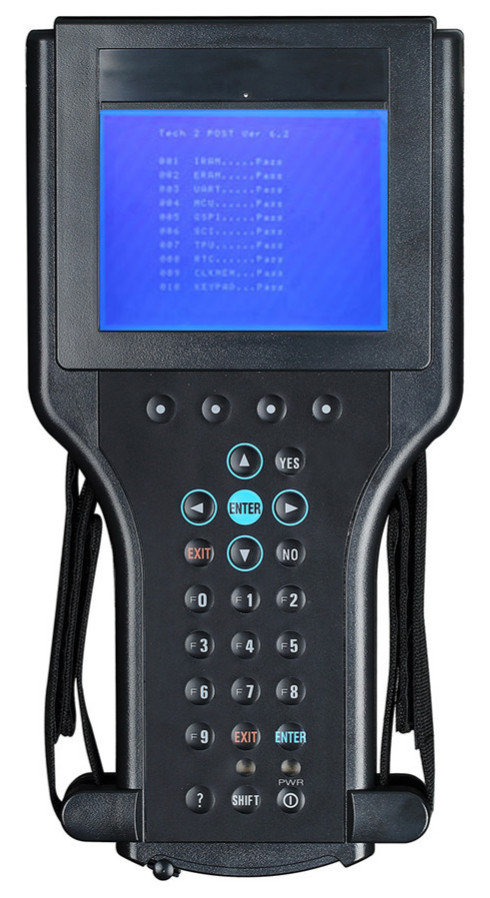

When the ABS light glows on your 2003 Winnebago, standard OBDII code readers often fall short. They might pull engine codes, but they typically cannot "talk" to the specialized ABS control module found on the Workhorse W-Series chassis. To effectively diagnose brake issues and perform an automated bleed, you need a dealer-level solution: the GM Tech 2 Scanner .
The 2003 Workhorse chassis (W20, W22, and W24) utilizes a Bosch ABS system integrated with GM electronics. The Tech 2 is the only handheld tool that offers:
Deep Module Access: Reads and clears specific ABS fault codes ($C-codes$) that generic scanners miss.
Live Data Streaming: Monitors wheel speed sensors in real-time to identify intermittent signal drops.
Bi-Directional Control: Commands the ABS pump and solenoids—a necessity for the automated brake bleed procedure.
Many 2003–2007 Workhorse owners encounter ABS warnings due to specific chassis quirks. Using your Tech 2, you can pinpoint these common failures:
The Workhorse W-Series was subject to a notable brake caliper recall. Overheating calipers can melt the ABS sensor or "cook" the grease on the tone ring, causing signal corruption. The Tech 2 will tell you exactly which wheel is reporting the error.
If your ABS light stays on but no wheel speed codes are present, the Bosch Hydro-Max master cylinder's differential pressure switch may be stuck. The Tech 2 can verify the status of this switch within the chassis data list.
Sometimes the sensors simply slide out of their sleeves. A Tech 2 allows you to monitor sensor output while driving at low speeds to see if a sensor is "dropping out" due to a wide air gap.

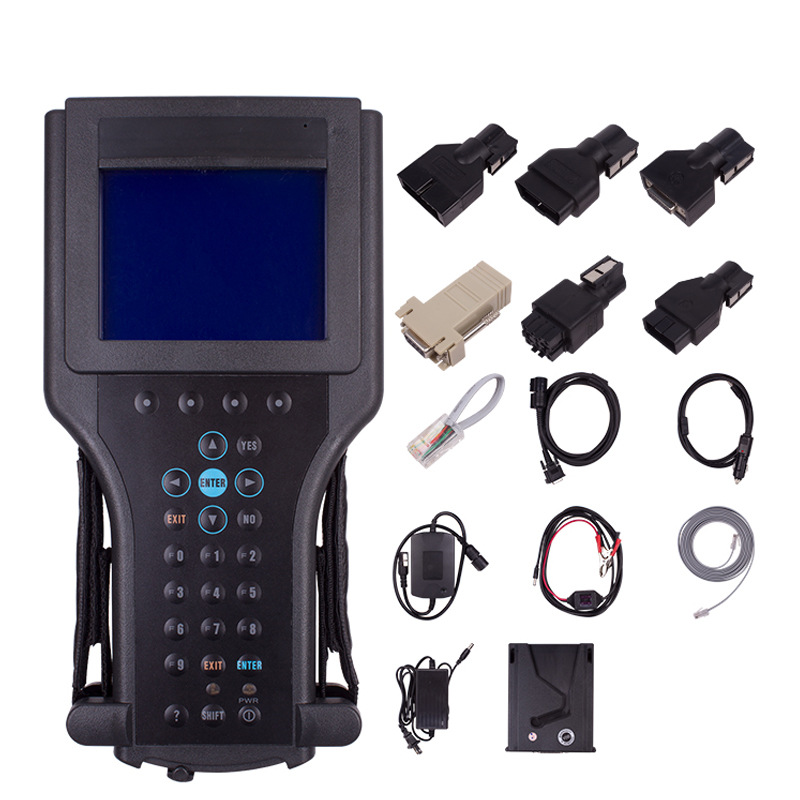

To read the ABS on your motorhome, ensure your Tech 2 kit includes:

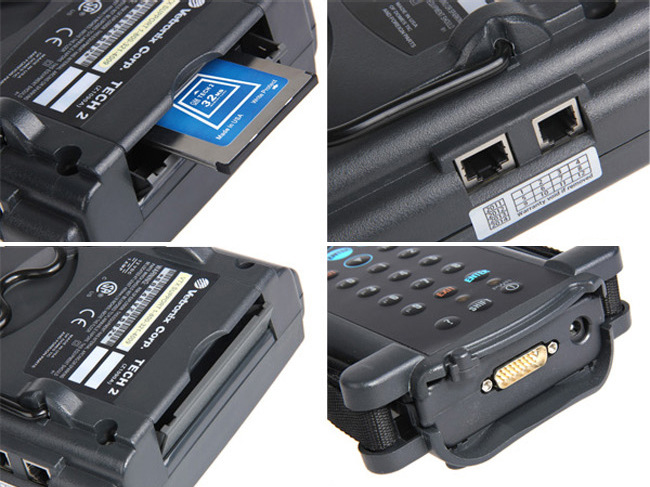

GM Tech2 32MB PCMCIA Card: Loaded with GM English software (version 33.004 or similar covers up to 2013/2014).
CANdi Module: While your 2003 chassis is pre-CAN bus, having the CANdi module ensures compatibility if you ever work on newer GM-based vehicles.
External Power Supply: RV diagnostic ports sometimes have inconsistent power; using the AC adapter or cigarette lighter power cable keeps the Tech 2 stable during programming.
Before replacing expensive ABS modules, use your Tech 2 to check the Wheel Speed Sensor resistance. A healthy sensor should read approximately 1000 ohms. If the software shows a 0 mph reading on one wheel while moving, check the physical sensor seating first.
Would you like me to find the specific step-by-step instructions for performing an ABS Service Bleed on the Workhorse chassis using the Tech 2?
This video demonstrates why the Tech 2 is the essential "don't leave home without it" tool for owners of the 8.1L Vortec Workhorse chassis.
