The John Deere Service Advisor is a diagnostic software used by technicians to troubleshoot and maintain John Deere equipment. This video to show you how to use John Deere Service Advisor EDL V2 V3 Software. If you have other questions about this tool, please contact our sales via joe@cartooldeal.com
How to use John Deere Service Advisor EDL V3 Software?
Here's the Steps to Use John Deere Service Advisor EDL V3 Tool
Start Your Vehicle:
Before launching the software, start your vehicle.
This ensures that the john deere edl v3 tool receives sufficient power through the vehicle's OBD port.

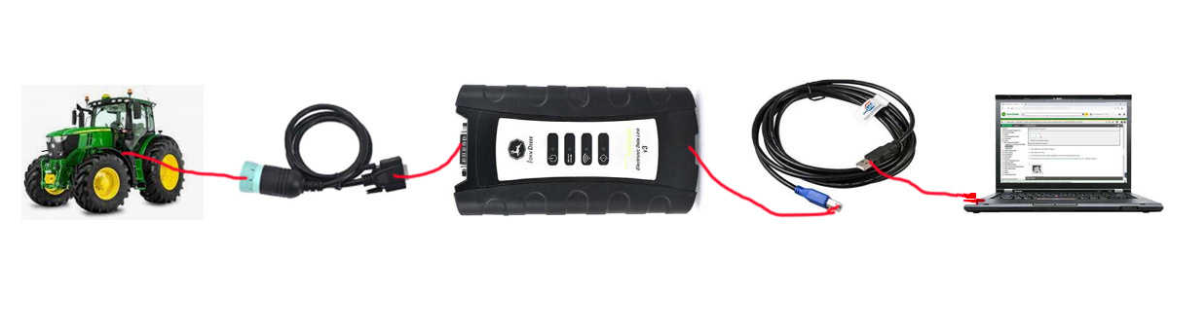

Connect the Hardware:
Attach the john deere edl v3 tool to the vehicle via the OBD cable.
Connect the EDL V3 tool to your laptop using the USB cable.
Verify Power and Connections:
Check the EDL V3 tool’s indicator lights to confirm it is receiving power.

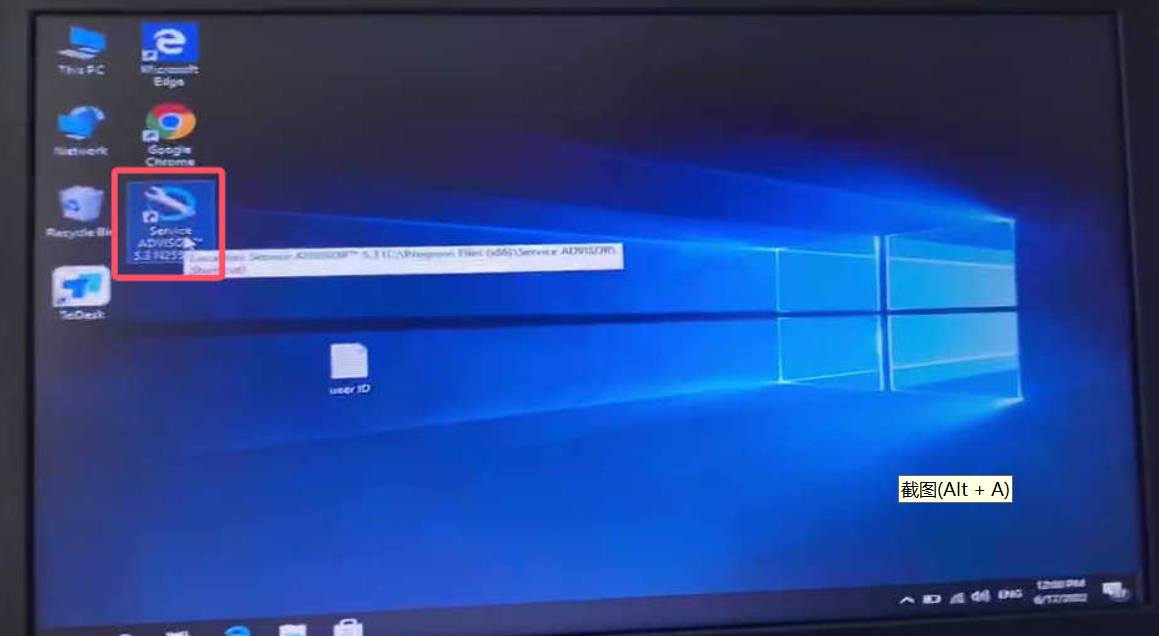

Launch the John Deere Service Advisor software on your laptop.

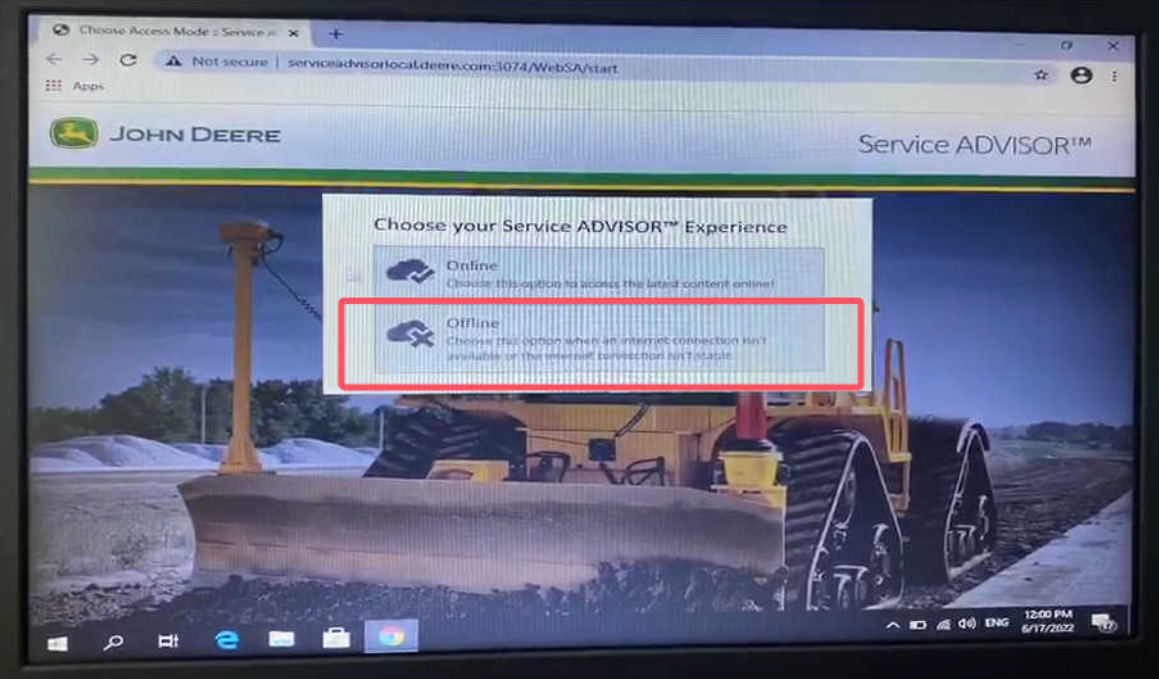

Choose the “Offline” mode.
Enter the username (e.g., “N2550XX”)

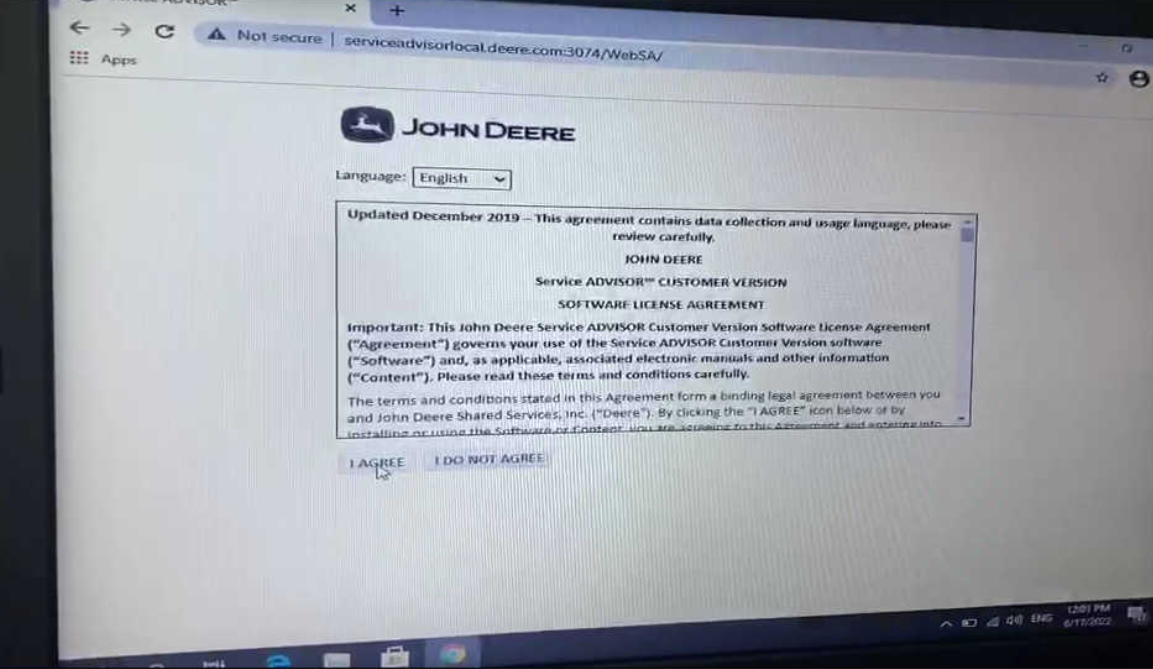

Agree to Terms:
Click “I AGREE” to proceed past the software’s terms and conditions.
Create a New Job:

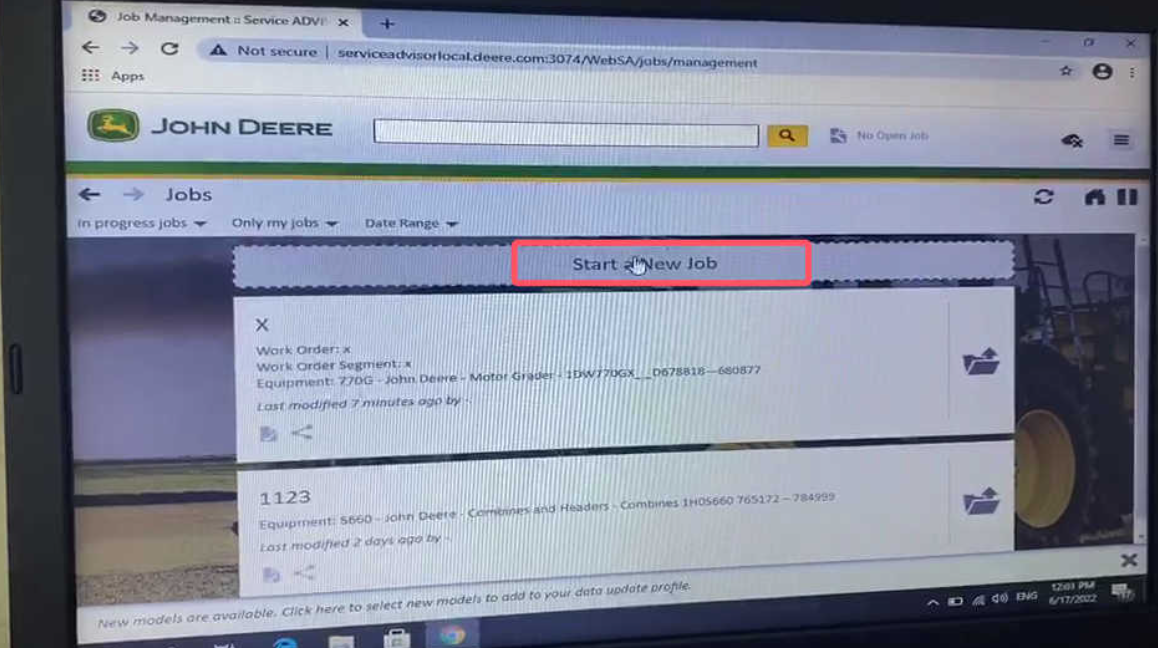

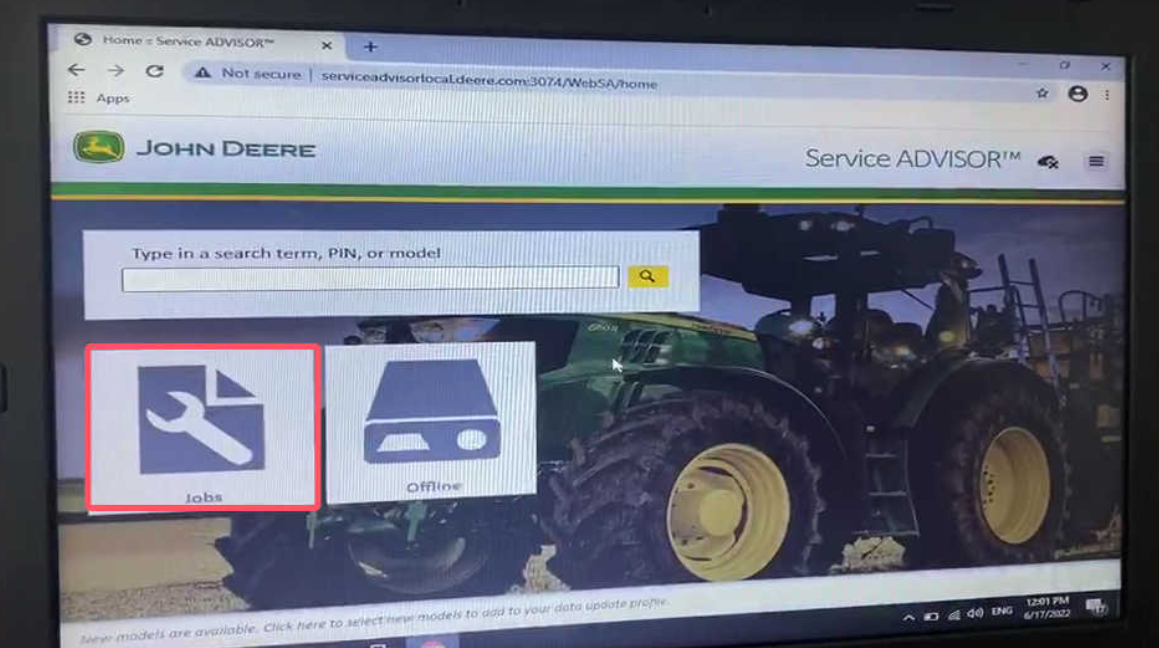

Navigate to “Jobs” and select “Start a New Job”.

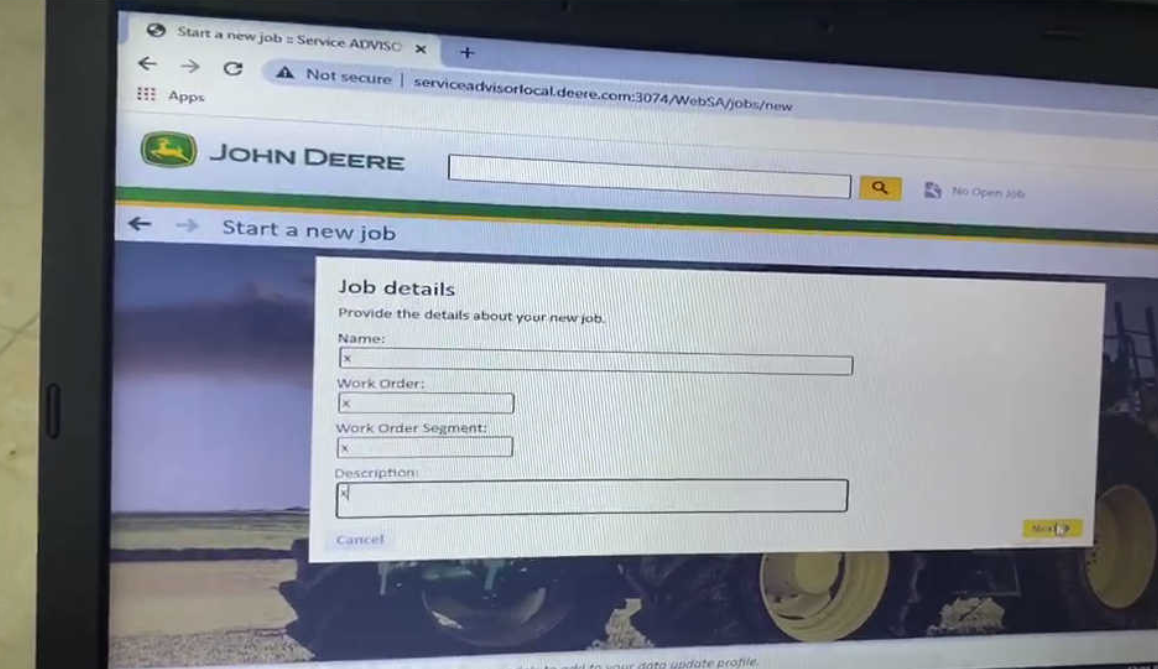

Fill in the required Job Details (e.g., job name, description).
Select the Tractor Model:

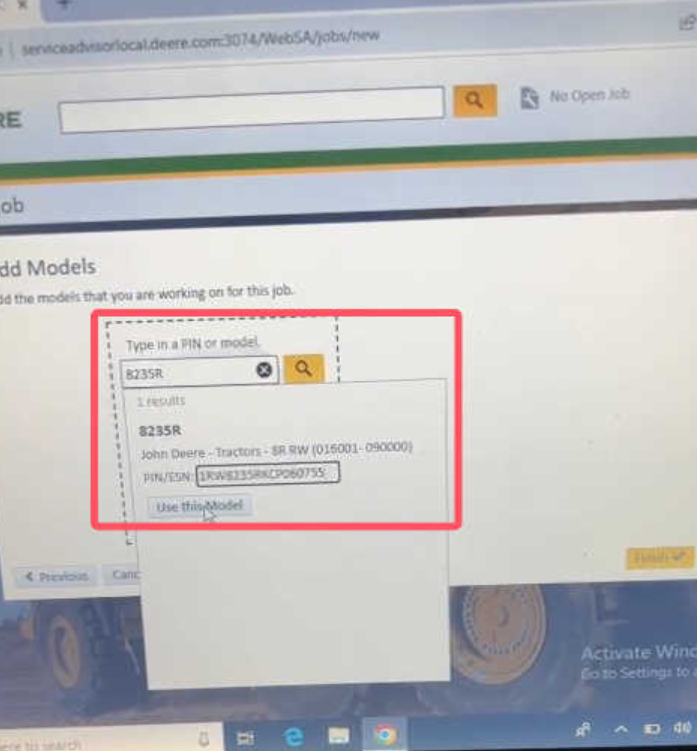

Input your tractor's model into the software.
Begin Diagnostics:

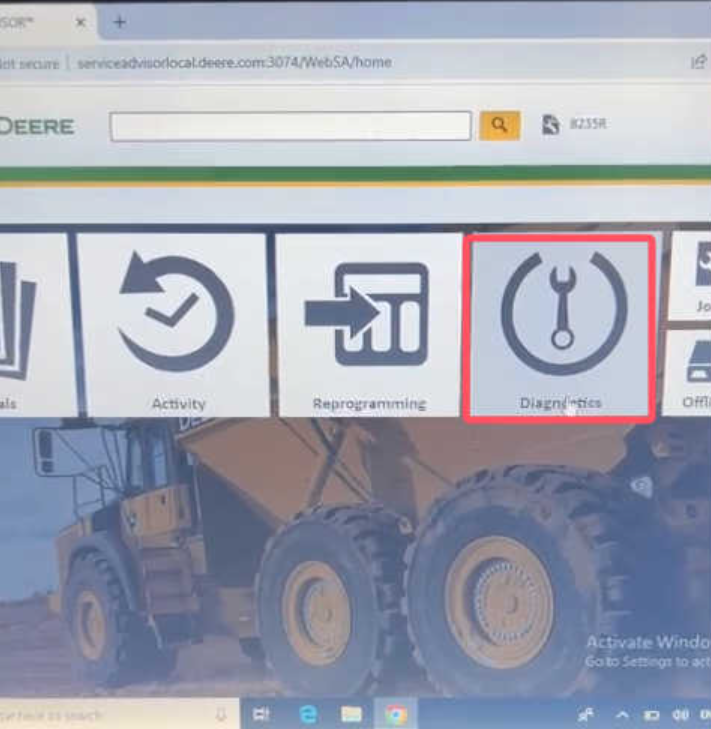

Click on the “Diagnostics” tab.
When prompted to select a driver:

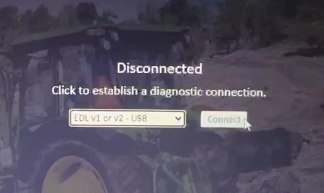

Choose the default driver: EDL V1 or V2-USB.
Avoid selecting any other driver.
Establish Connection:
Click “Connect” to start communication between the laptop and the tractor.
Confirm that the EDL V3 tool’s indicator lights are active, signaling a successful connection.
Diagnostic Codes:

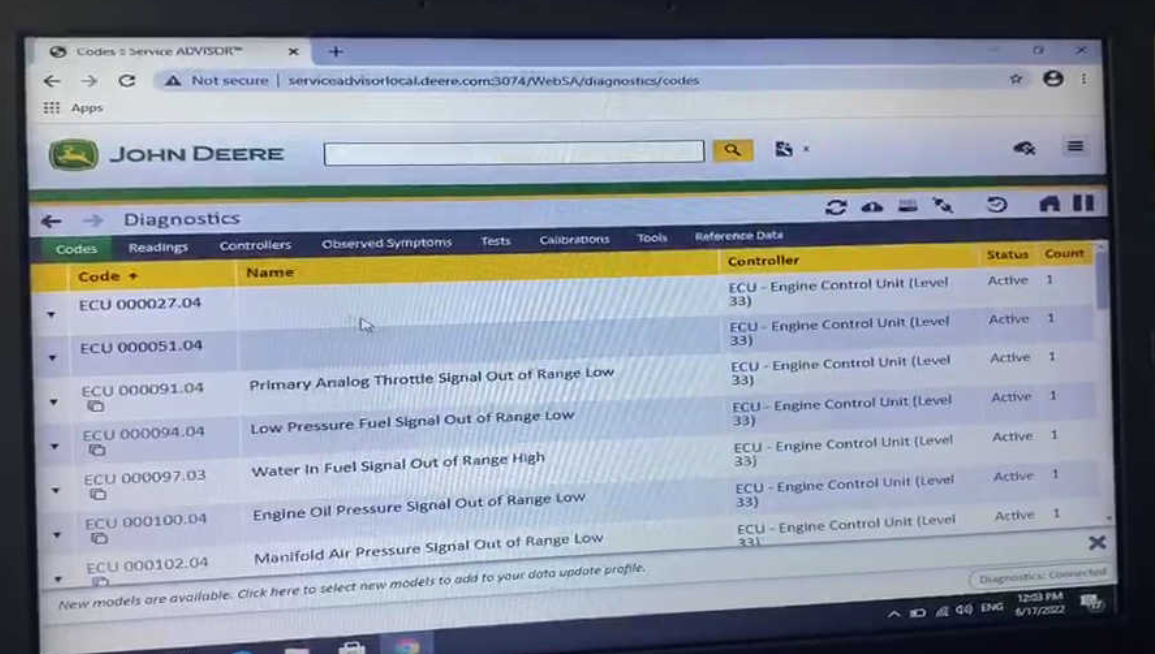

The software will automatically scan and display diagnostic codes.
Use the provided information to identify and address any issues.
Additional Notes:
Power Supply: If the vehicle is not started, the EDL V3 tool may not function correctly due to insufficient power.
Ensure all connections are secure and that the tool's lights indicate proper functionality before proceeding with diagnostics.
If the software fails to connect, restart the software and recheck the hardware connections.
By following these steps, you can effectively diagnose and troubleshoot issues using the John Deere Service Advisor EDL V3 Tool. For further assistance or clarification, reach out to your vendor or technical support team.
