The GM Multiple Diagnostic Interface 2 (MDI 2) is the staple hardware interface utilized by professional technicians and repair shops to communicate with modern General Motors vehicles. Whether you are performing routine diagnostics on a 2014 Chevy or flashing control modules on a brand-new 2026 Cadillac, understanding how to configure your hardware and software environment is critical.
This comprehensive guide answers the most pressing technical questions regarding the GM MDI 2 to minimize your shop's downtime.

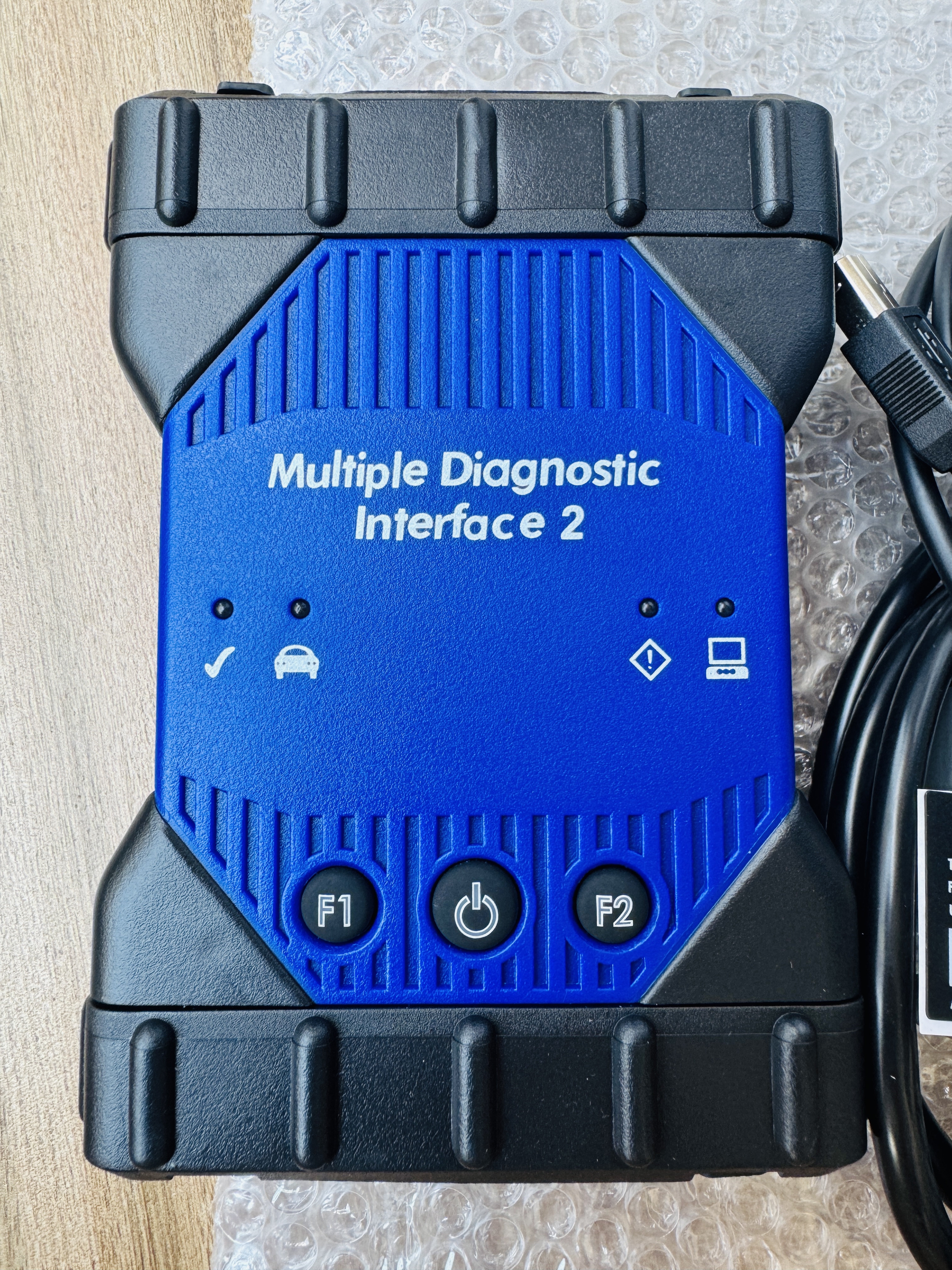

The GM MDI 2 is the next-generation Global Diagnostic Interface tool designed to connect a vehicle's onboard networks to a PC application. It provides faster data transfer speeds, enhanced security, and broader bus architecture support compared to the legacy MDI 1 and Tech 2 flash tools.
To utilize the MDI 2, your computer must run GM's proprietary Techline Connect ecosystem, which acts as a single-point gateway for the following diagnostic applications:
GDS2 (Global Diagnostic System 2): The primary diagnostic scan software used for trouble code reading, live data viewing, and active component tests on 2014 and newer models.
SPS2 (Service Programming System): The internet-based flashing application used to update, configure, and reprogram automotive Electronic Control Units (ECUs).
Tech2Win: A software emulator that mimics the classic Tech 2 handheld tool for legacy 1996–2013 OBD II vehicles.
Improper order of installation is the leading cause of communication failure between the PC and the interface. To ensure a clean handshake, always install the manager software before plugging the hardware into your computer.
Log into your AC Delco TID / Techline Connect subscription account. Download the latest version of the MDI Manager application. Do not connect the MDI 2 hardware to your PC yet.
Right-click the downloaded setup file and select "Run as Administrator." Follow the on-screen prompts to install the core software drivers and the MDI Manager shell.
Plug the provided USB cable into your laptop, and connect the other end to the MDI 2. Your operating system will automatically recognize the new hardware and map the newly installed drivers.
Open the MDI Manager desktop app. Click on your detected device and check for firmware updates. If an update is available, keep the USB securely connected until the firmware flash completes.
If your unit powers on but fails to establish a vehicle or software connection, it is typically caused by a driver mismatch or incorrect network interface settings within the PC.
Outdated MDI Manager: Techline Connect will block communication if your local device firmware lags behind the server's current version. Run MDI Manager and force a firmware sync.
MDI Driver Glitch: Open Windows Device Manager. Locate the network adapters or universal serial bus controllers. Look for "Bosch MDI" or a yellow exclamation mark. Right-click, select Uninstall Device, unplug the tool, and replug it to force driver re-enumeration.
USB vs Wi-Fi Conflicts: For flashing and SPS2 programming, always use a physical USB connection. Wireless configurations are highly susceptible to signal drops that can permanently brick an ECU during a calibration update.
Depending on your workshop's specific requirements, you can choose between standalone hardware or bundled configurations to minimize software deployment delays.
| Package Option | Best Suited For | What Is Included |

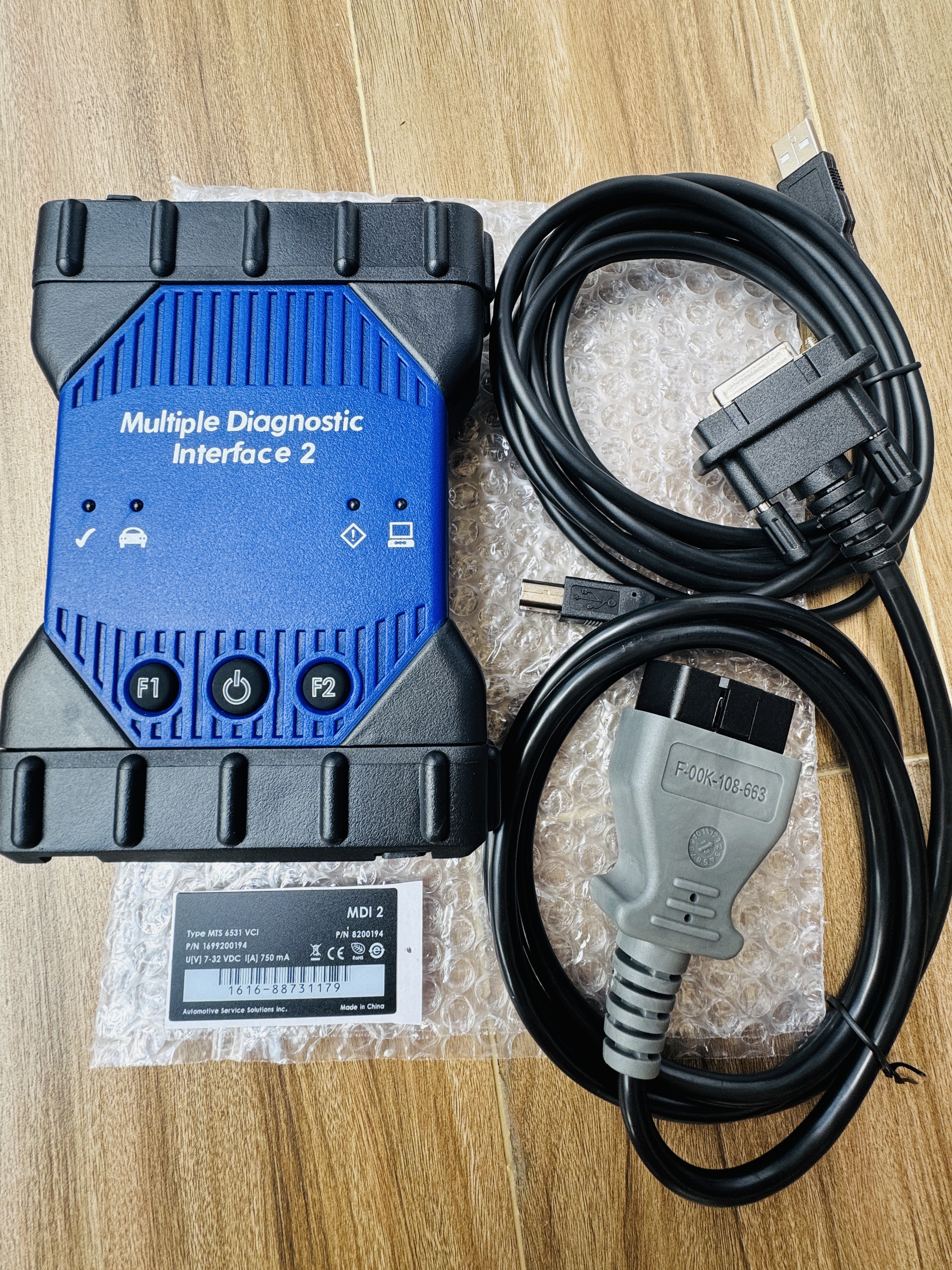

| MDI2 Standalone Hardware Kit | Shops that already have a dedicated, configured rugged diagnostic laptop. | MDI2 Main Unit, OBD2/DLC Cable, USB Interface Cable. |
| MDI2 Hardware + Software HDD/SSD | Technicians who want to bypass long installation times and driver errors. | Main unit with a pre-configured internal SATA drive containing GDS2, Tech2Win, and drivers. |
| Full Plug-and-Play Bundle | Garages requiring immediate, out-of-the-box programming capabilities. | Main unit, matching connection cables, and a rugged workshop laptop (e.g., Panasonic Toughbook) with software fully installed. |
Yes, but the software layer determines its capabilities. While the GM MDI 2 hardware supports older vehicles via its J2534 pass-thru protocol, you must run Tech2Win software to service most vehicles built between 1996 and 2013. For contemporary vehicles (2014 to present), the system switches over automatically to GDS2. Keep in mind that for specific vintage vehicles or unique operations like certain module configurations on pre-2000 trucks, a dedicated physical Tech 2 tool may still be required.
To avoid the risks of communication failure and lack of component support, independent garages, locksmiths, and truck mechanics turn to specialized professional tool distributors.
You can purchase high-quality GM MDI2 hardware kits and pre-configured diagnostic software directly from cartooldeal.com. As an experienced automotive diagnostic instrument supplier based in China, Cartooldeal ensures all components undergo rigorous hardware testing, dual-board architecture verification, and validation for stable pass-thru execution—preventing packet loss during critical module flashing.
