Red VNCI 6154A ODIS for VW Audi Skoda Seat OBD2 Scanner Support CAN FD DOIP
Red VNCI 6154A Description

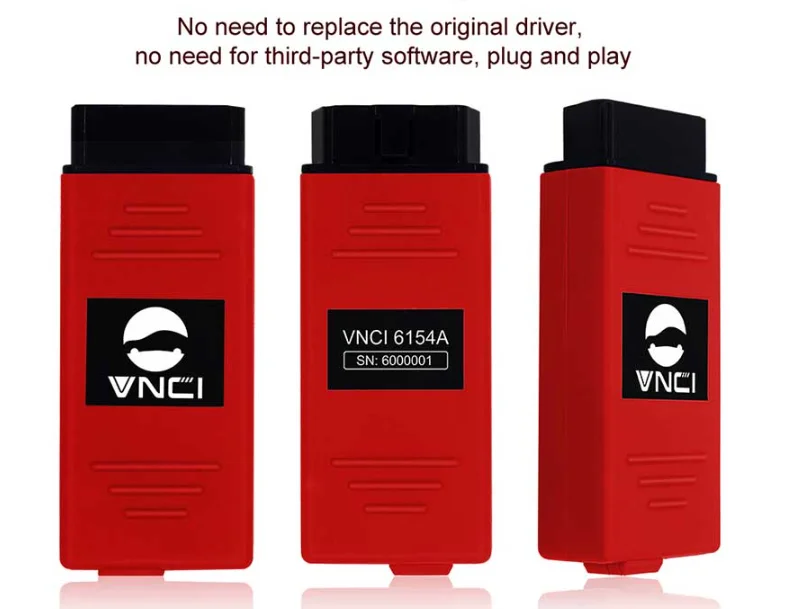

1. VNCI 6154A Work with original driver, don't need driver manager, no need for third-party software, plug and play
2. 100% support for all original factory function.
3. With base station/hotspot mode switching button
4. Compatible with O-DIS-S V9.1.0, V10.0, V11.0; O-DIS-E: V14.1/V15.0/V16.0
5. Support Doip, CAN FD protocol
6. Free license till year 2030
7. Covering all Volkswagen Group models from 1995 to 2023 and beyond
8. Full Multilanguage edition covered 22 languages:
English (GB), English (US), French (FR), German (DE), Spanish (ES), Russian (RU), Greek (GR), Danish (DK), Croatian (HR), Italian (I), Hungarian (HU), Netherlands (NL), Polish (PL), Portugal (PT), Romanian (RO), Slovenian (SLO), Finish (FI), Swedish (SW), Turkish (TR), Czech (CZ), Japanese (JP), Chinese (CN), Korean (KO).
9. Three connection methods to adapt to various scenarios
USB Connection Mode: Connect via the USB cable.
AP Direct Connection Mode: Connects to a computer via the built-in WIFI of VNCI 6154A, similar to Bluetooth connection.
Base station Connection Mode: Connect the VNCI 6154A device and the computer to the same local area network.
AP connection mode and station connection mode can be switched through the device button.
WIFI Password: 12345678
Notice about How you install vnci 6154a software
1. Please install on Windows 10(64bit), 4GB of memory or above, and make sure your C:/ Driver have 60GB space.
2. VNCI 6154A is not a J2534 Passthru because it loaded with newer vesion Firmware.
What is the difference between the NEW 6154 DOIP Version and the normal VAS6154?
DOIP 6154 can support DOIP diagnosis, especially it can do 2018 to 2020 new cars,
DOIP 6154 supports more protocols (CAN FD and DoIP) than the old 6154.
VNCI 6154 vs VXDIAG VCX SE 6154
VCX SE on vag works good but emulate vas6154 not vas6154a.
VNCI emulate vas6154a.

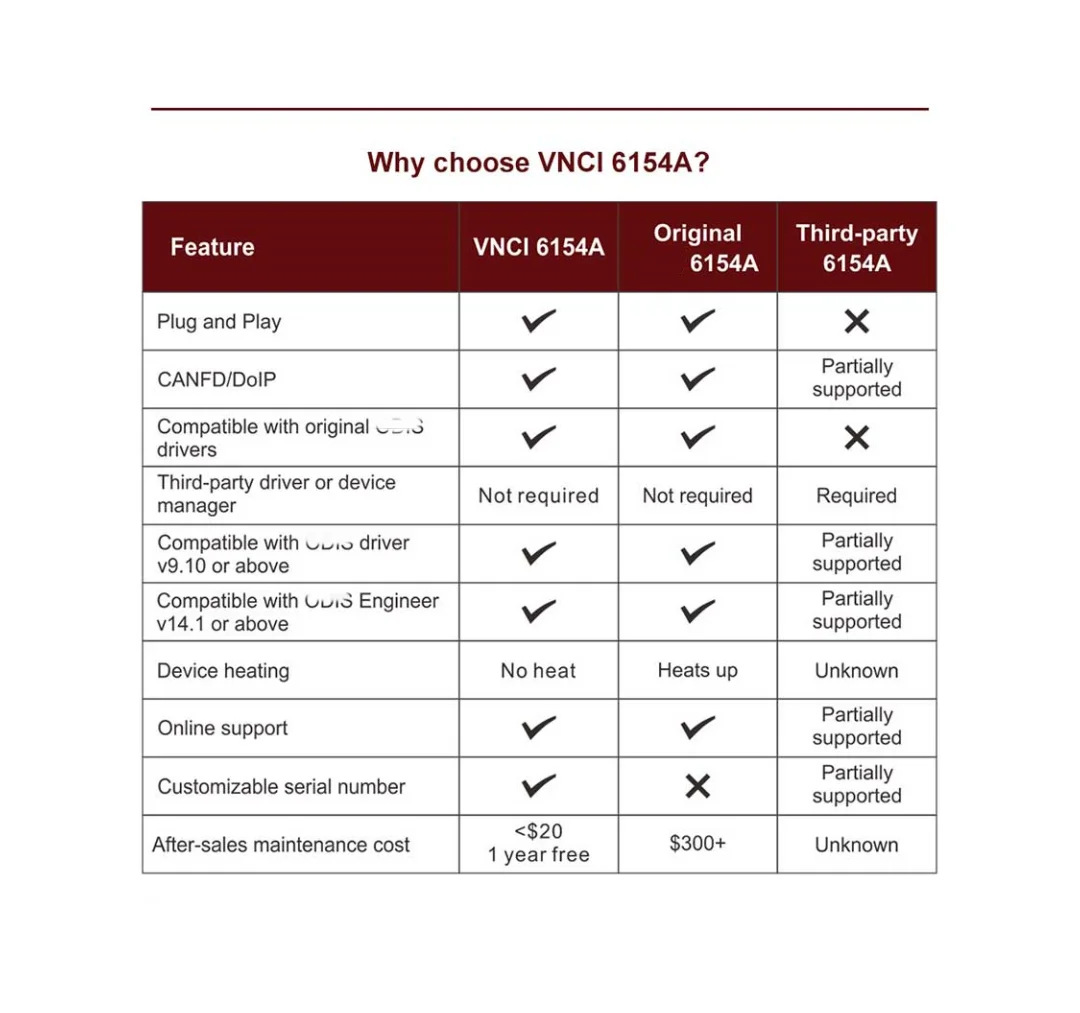

Why choice Red VNCI 6154A ?
VNCI 6154A Features:
– Estimated remaining times are shown for ECU flash operations.
– Diagnostic protocol contains interruptions of GFF sessions, extended measurement values, improved ECU communication view, used diagnostic hardware, connection type of diagnostic hardware, operating system, the hotfix used, and submissions of support requests
– The measured value display has been improved.
– Documents in GFF are displayed in separate windows.
– One message box will be shown at the beginning of the test drive mode.
– GFF hotfixes can be integrated during diagnostic sessions.
– Danger messages have been revised.
– Stopping diagnostic sessions may be interrupted.
– Automatic deletion of autosave diagnostic protocols after successful transmission.
– Selection of PassThru diagnostic hardware has been improved.
– Service Software update has been stabilized.
Red VNCI 6154A ODIS Functions
automatic recognition of the communication mode with the vehicle
reading and decoding fault codes
erasing errors
viewing current parameters in digital (up to 8) or graphic (up to 6) form
activation of actuators
adaptation of blocks and executive units
coding of electronic components
restoring basic settings mode
special test modes (cylinder balance, etc.)
ability to save and print received data
automatic scanning of all electronic components of the car with the output of a summary report
injection system diagnostics
fuel system diagnostics
performing service procedures
Control unit software update
Online function
Flashing of hidden features
Coding and programming
Covering most of the models under Volkswagen Group's automotive brands
Support service v9.10/v10.0/v11.0+
Support Engineer v14.1/v15.0/v16.0+
100% Support DoIP protocol
100% Support CAN FD protocol
Support KWP2000/UDS/CAN/K-Line......etc protocol
100% support all protocols
Vehicle diagnosis
Online/Offline programming
Flashing of hidden features
Support all service and engineer function
The Following Vehicle Bus Systems are Supported
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE)
Covered models:
ForVolkswagen: 1995Y-2023MY+
ForAudi: 1995MY-2023MY+
ForSeat: 1995MY-2023MY+
ForSkoda: 1995Y-2023MY+
ForBentley: 1995MY-2023MY+
ForLamborghini: 1995MY-2023MY+
MAN: 1995MY-2023MY+
New Type SVCI 6154A (Red VNCI 6154A) Fixed some bugs:
1. Fixed that Interface heats up after long time use (lost firmware)
2. Fully Supported CAN FD and Doip protocols
3. Directly use with software and no need for Driver Manager
4. Upgrade to support service 9.1/10.0/V11.0 and Engineering V14.1/V15.1/V16

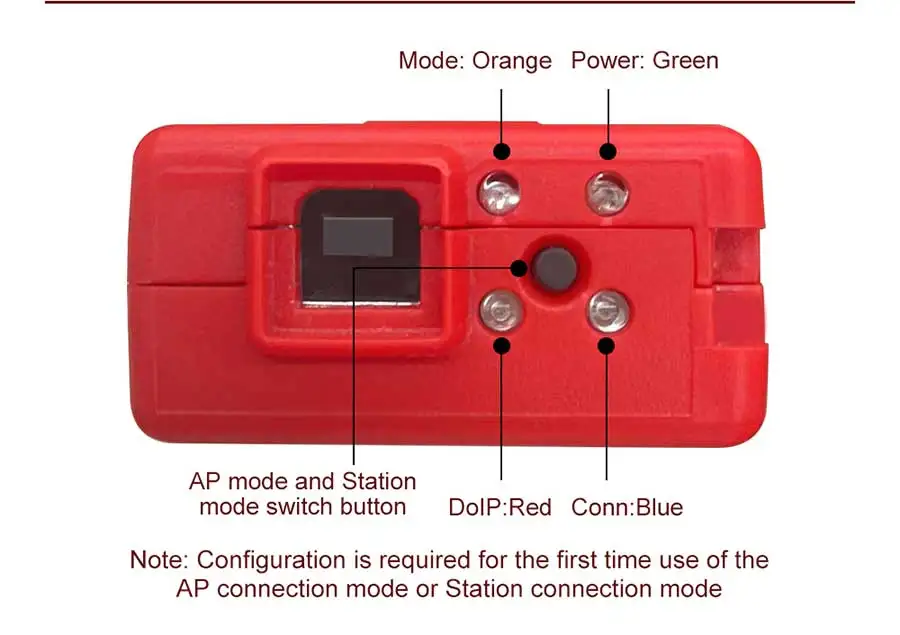

LED light instructions:
Orange: Mode
Green: Power
Red: DoIP communication
Blue: Connection status
Button: AP connect mode and Station connect mode switch button

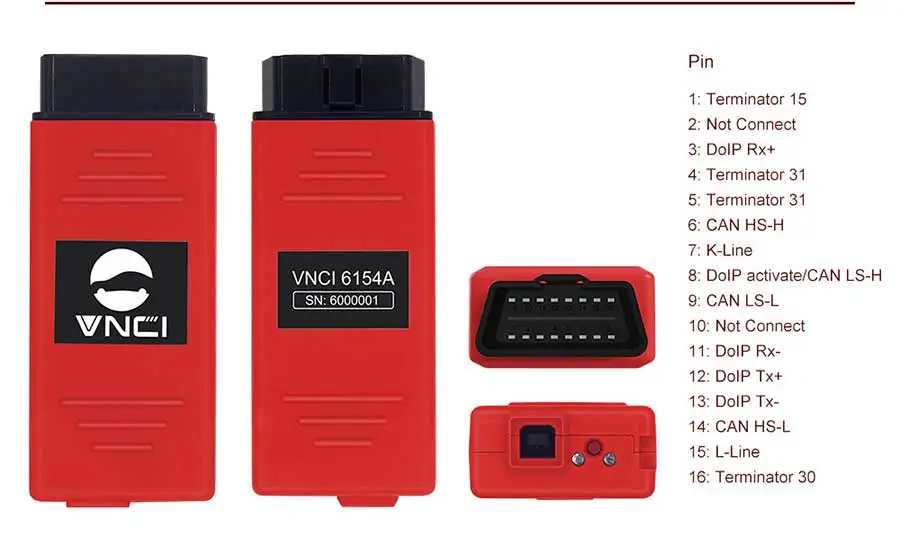

Adapter pinout:
Pin1: Terminator 15
Pin2:Not Connect
Pin3: DolP Rx+
Pin4: Terminator 31
Pin5: Terminator 31
Pin6: CAN HS-H
Pin7:K-Line
Pin8: DolP activate/CAN LS-H
Pin9: CAN LS-L
Pin10:Not Connect
Pin11: DolP Rx
Pin12: DoIP Tx+
Pin13: DoIP Tx
Pin14: CAN HS-L
Pin15: L-Line
Pin16: Terminator 30
VNCI 6154A power supply methods
OBD port 12 power supply
USB port 5v power supply

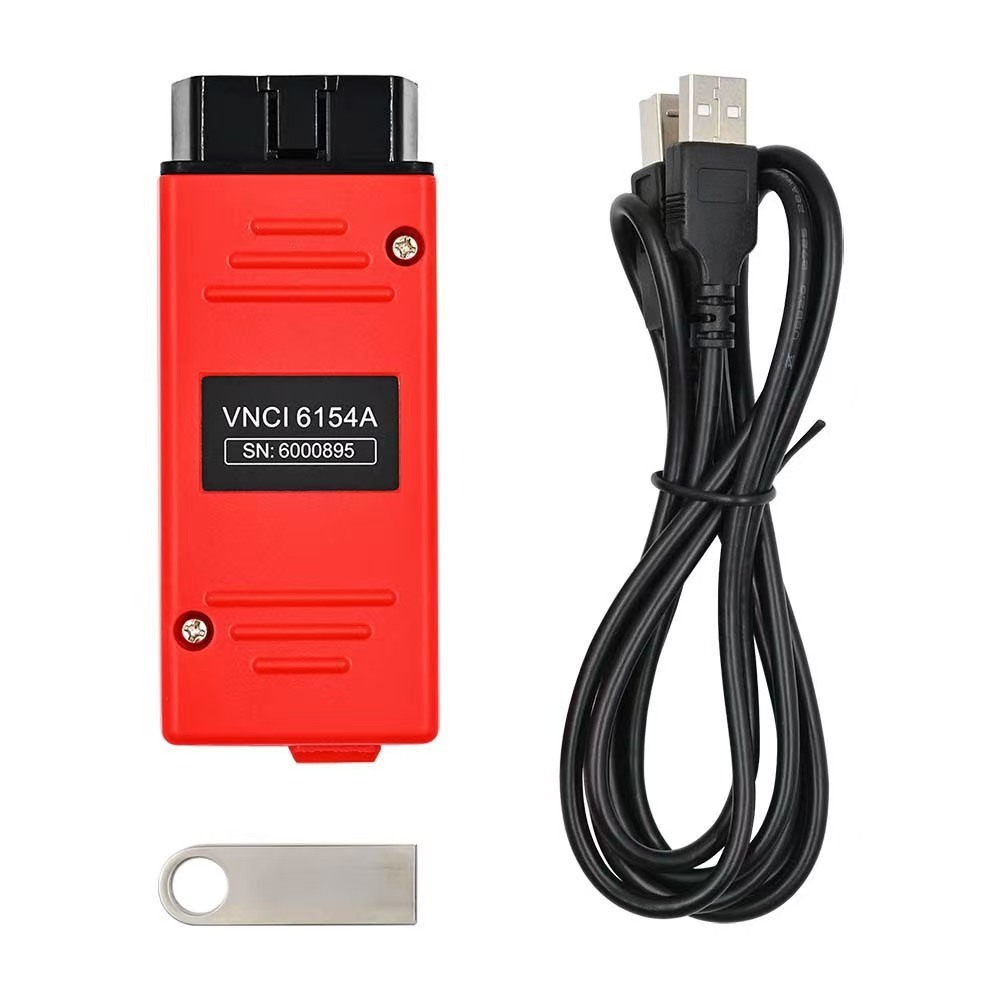

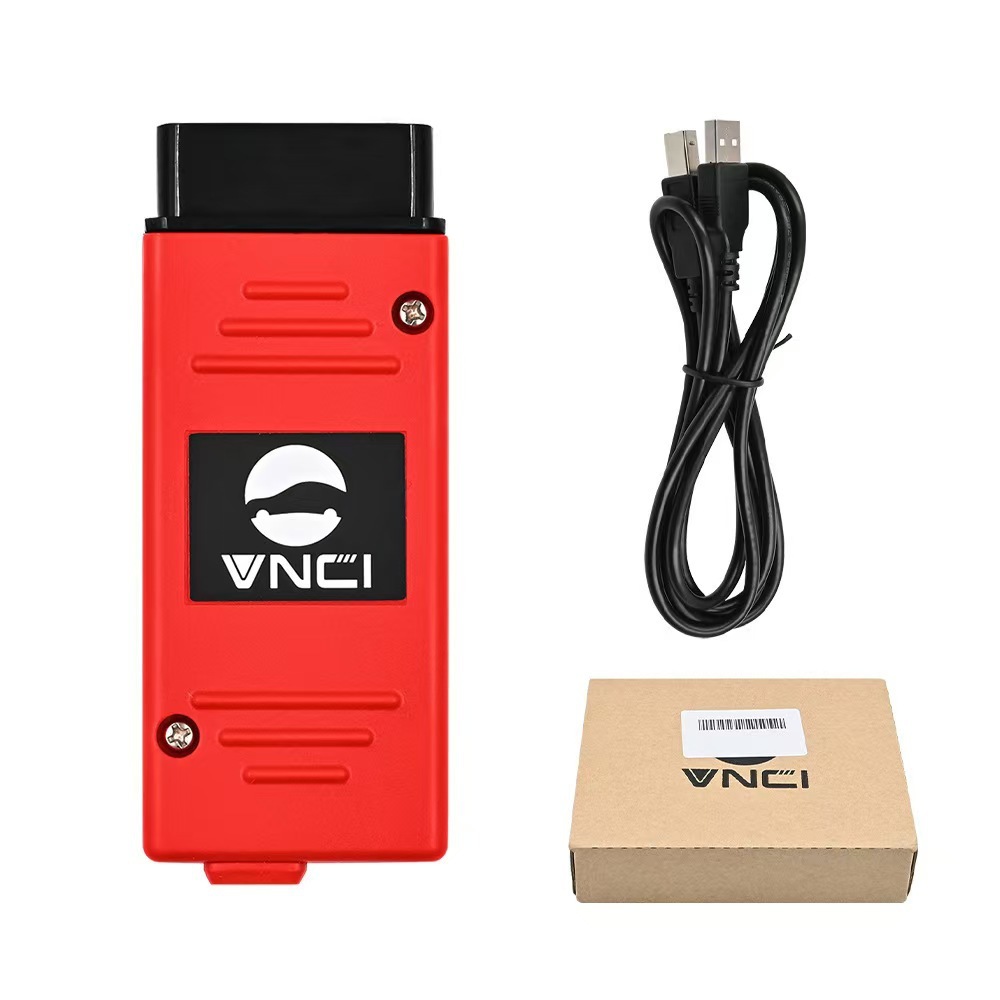

Packing List
1x Red VNCI 6154 Diagnosis Head
1x USB cable
