OPCOM V1.99 OP COM For Opel Car Diagnostic tools Support Opel Till Year 2014
Opcom OP Com 1.99 Highlights:
1. Language: English
2. Software Version: 120309a Hardware Version: 1.99
3. OP-COM - PC based Opel diagnostic tool, work on Opel till year 2014
4. With PIC18F458 Chip, work more stable
5. It can work on both Windows XP and 7 now
6. if you looking for a professional diagnostic tool for Opel, you may choice GM Tech2 with Opel card .
OP COM Diagnostic Tool Function:
1. It covers almost all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.
2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.
3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.
4. Since Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.
PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
5. Fault codes will be shown with all available information:
OP COM Opel Diagnostic Tool Description:
1) Full status information (Present, Not present, Intermittent)
2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.
3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.
4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!
You can also run output tests on many controllers.
PIN6-PIN14
PIN3-PIN11
PIN1
HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps
MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

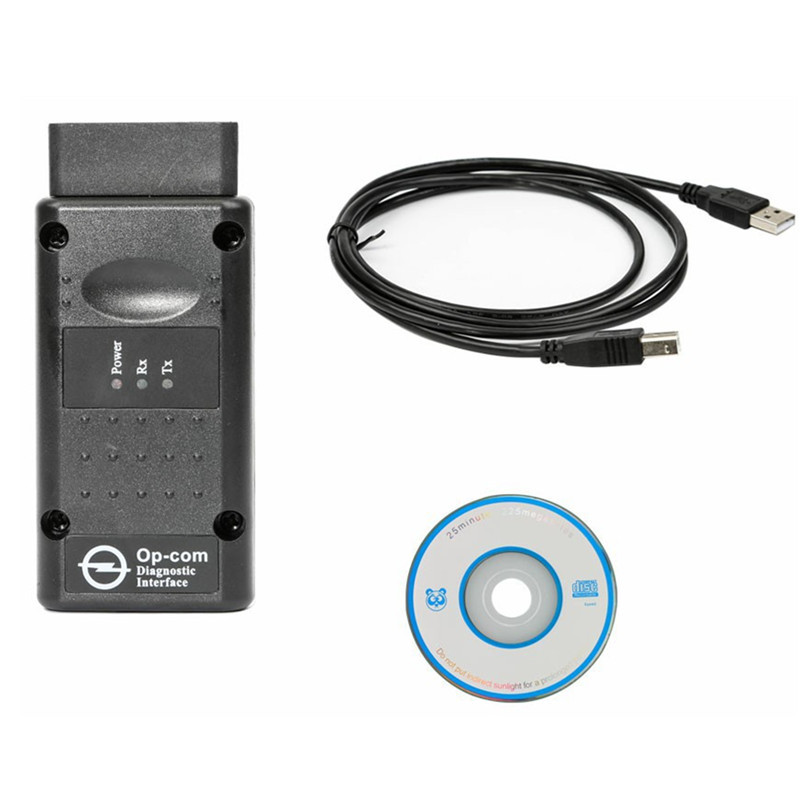

OP COM Package list:

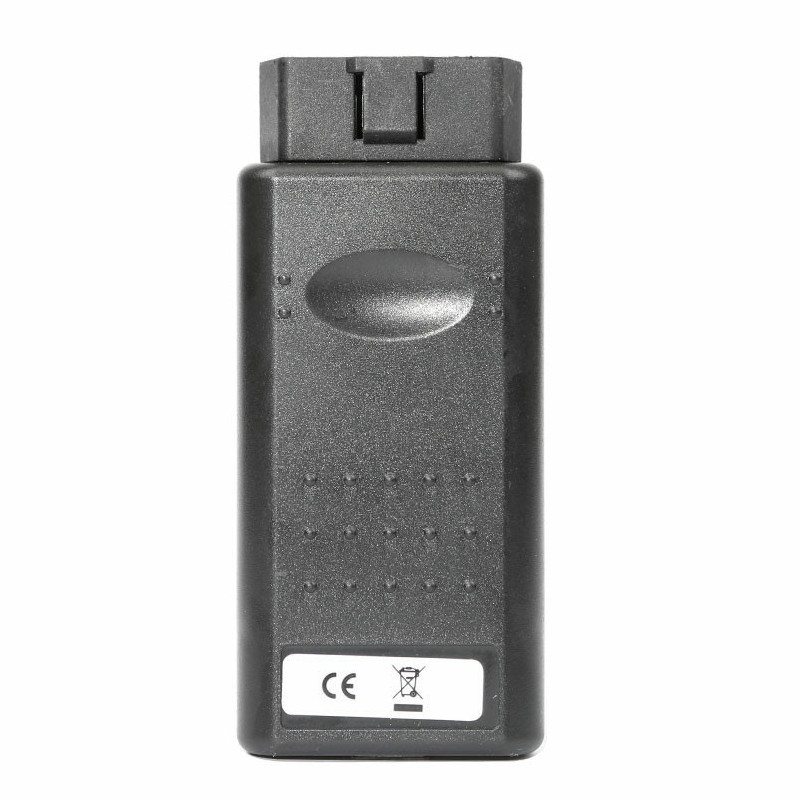

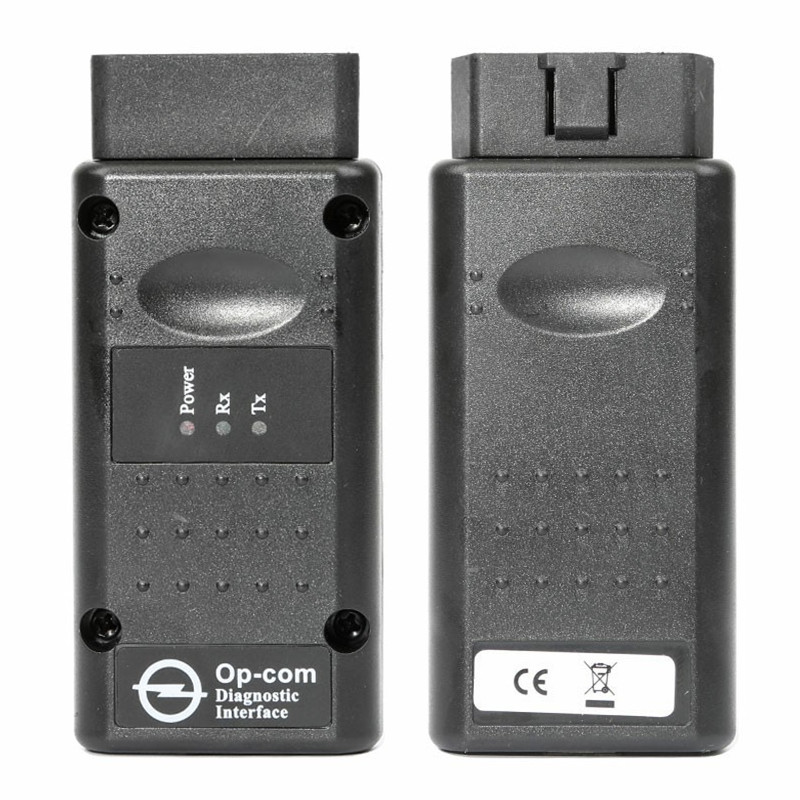

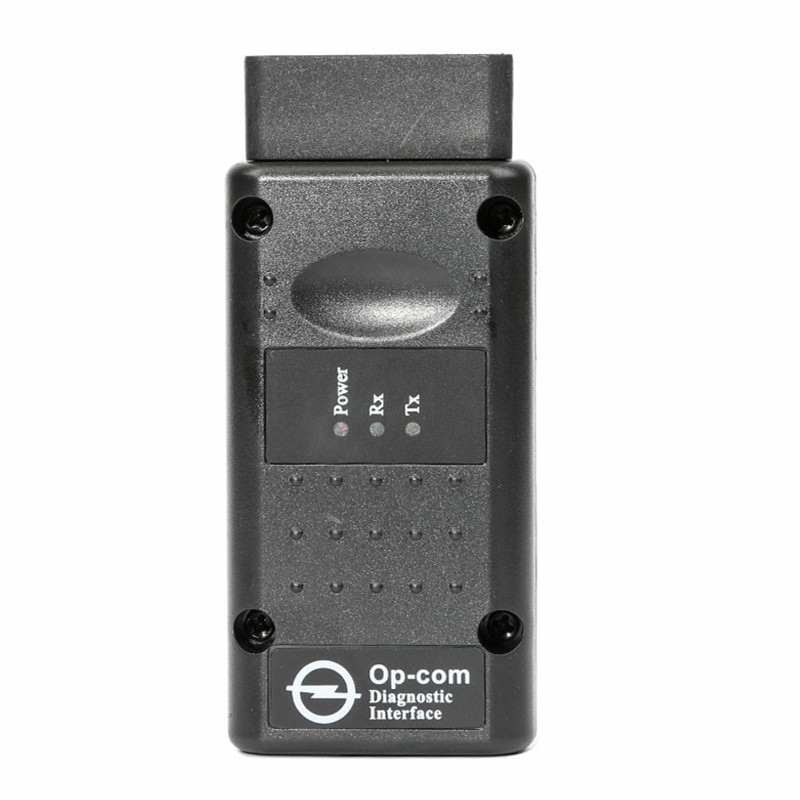

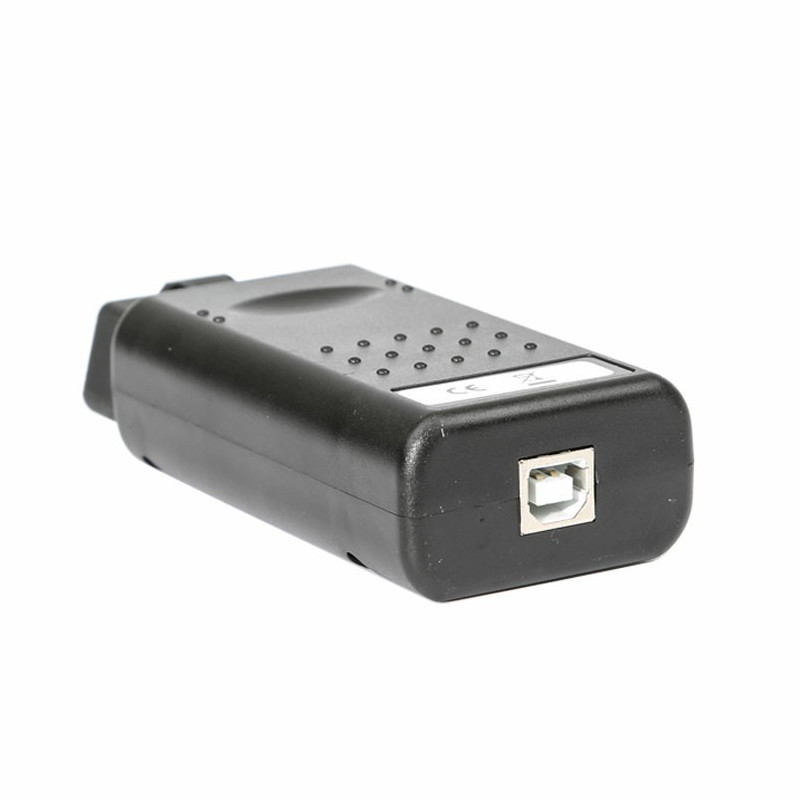

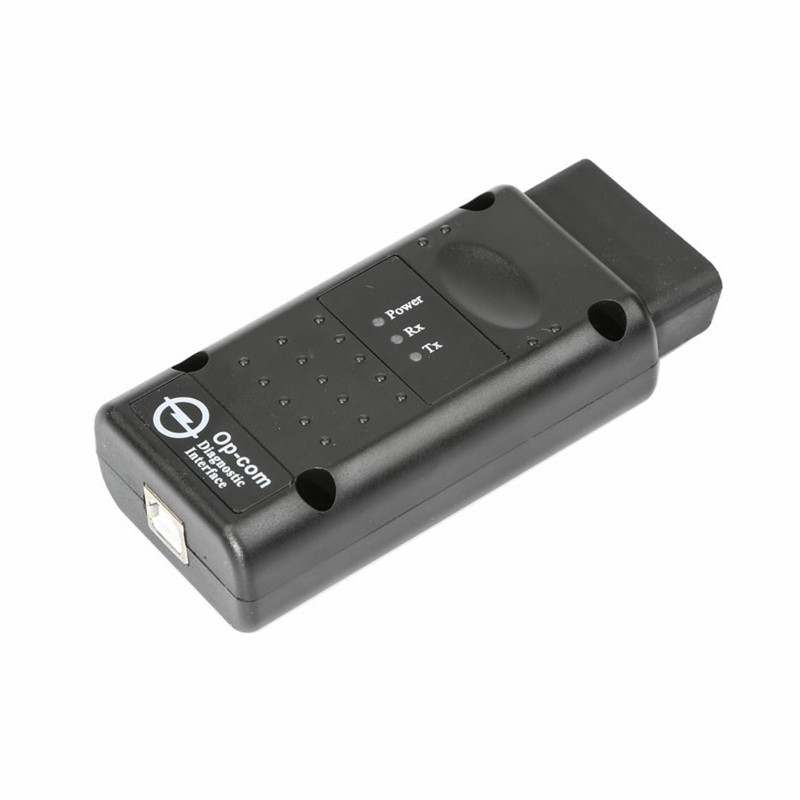

1pc x OP COM Interface

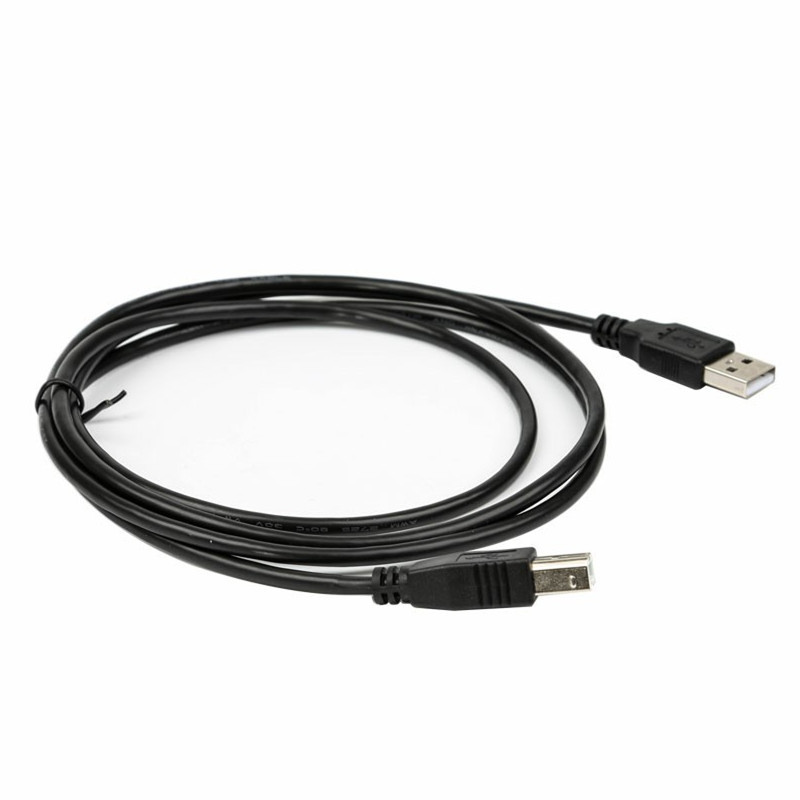

1pc x USB Cable
1pc x OP COM Software and Drivers CD
