LED BDM Frame With 4 Probes Pens For BDM Programmer CMD100 KESS V2 Ktag Fgtech ECU Programmer Tool

LED BDM Frame With 4 Probes Pens For BDM Programmer CMD100 KESS V2 Ktag Fgtech

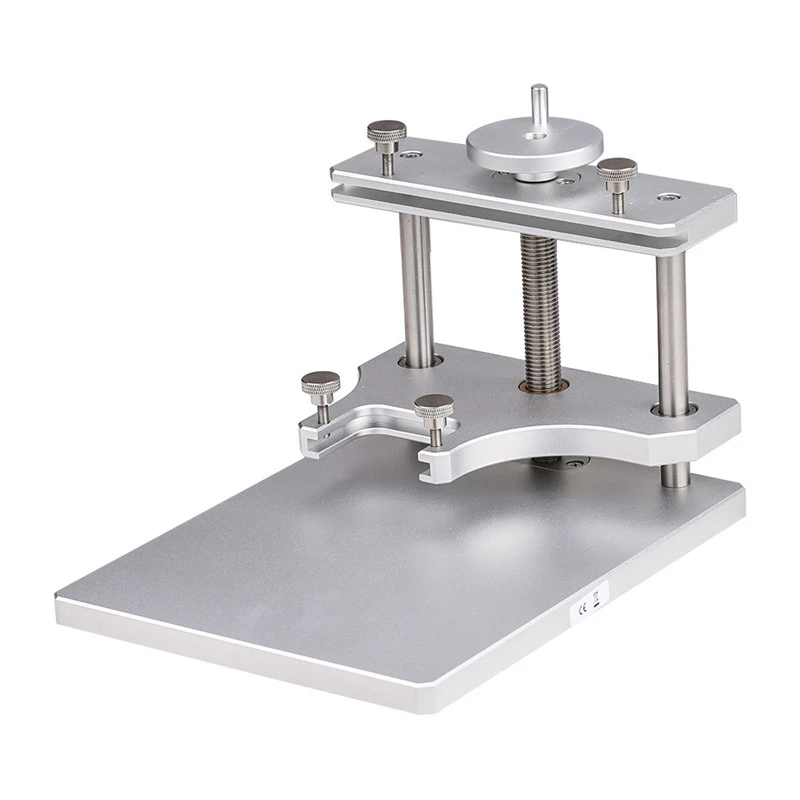

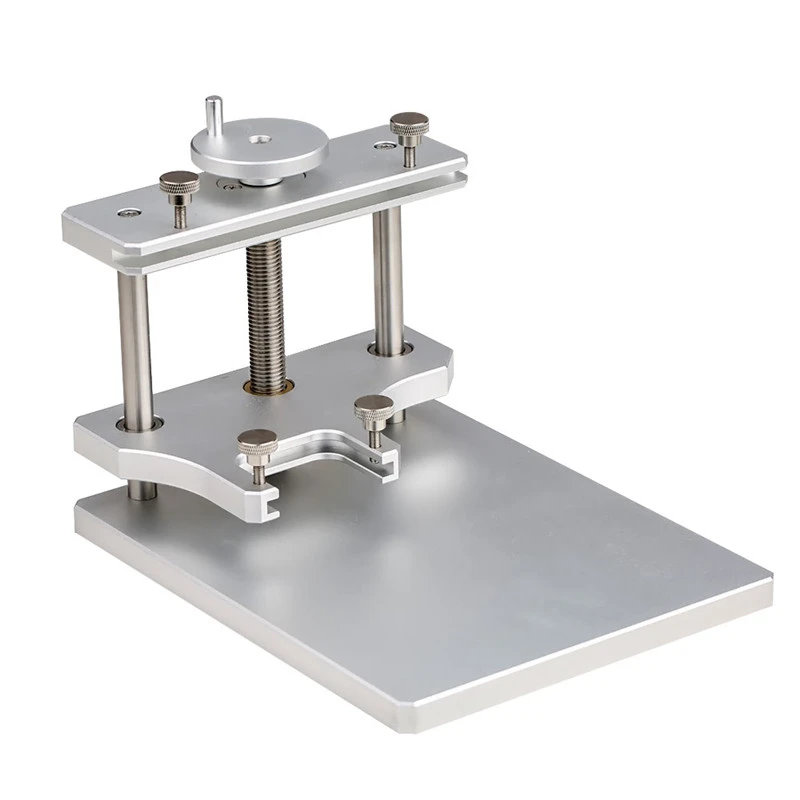

BDM FRAME with Adapters Set, made from hight quality stainless steel,can use on BDM100 programmer,KESS V2, Ktag, Fgtech,CMD,ETC.

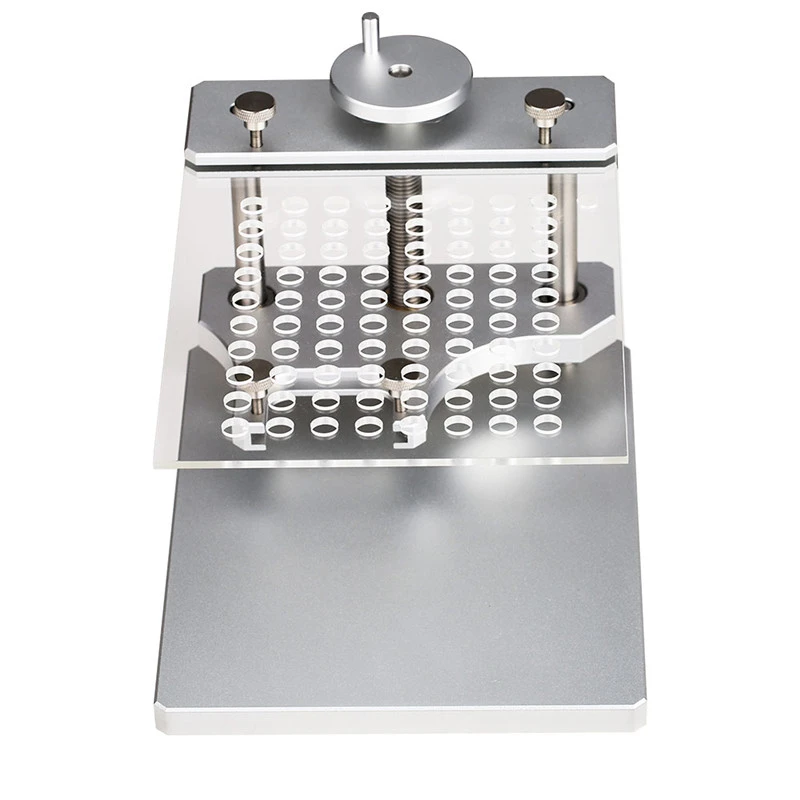

LED BDM Frame Description:

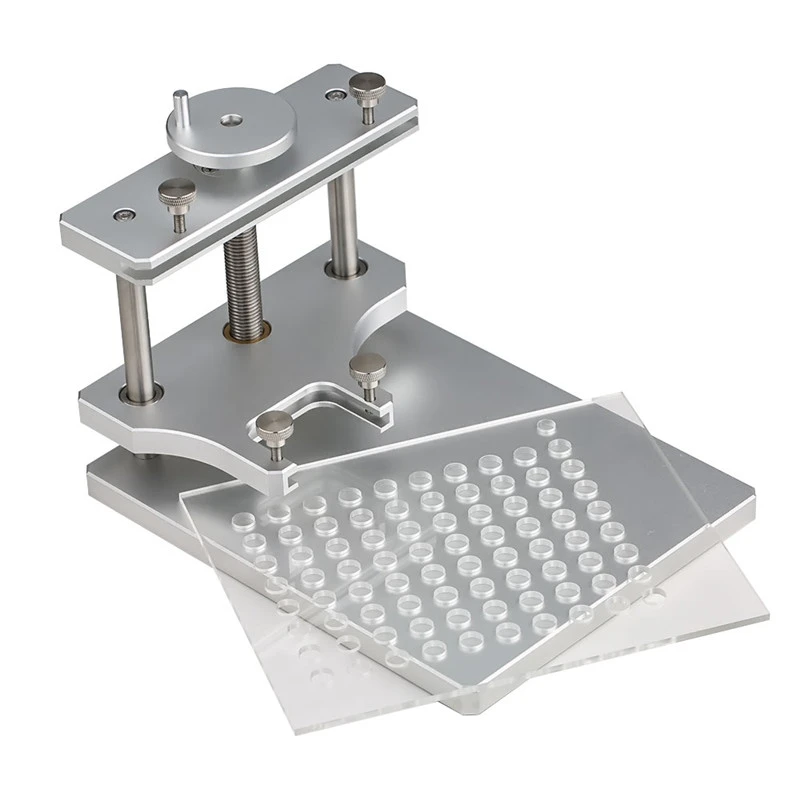

1. It consists of a Acrylic board, Mesh and 4 Probe Pens.
2. LED works for 12V. After you connect with the probe, disconnect 12V battery for LED, it will work.The probe pin is adjustable.
3. It is the best bracket for ECU Update/ECU Brush and Write/ECM Modified and programming/Probe holder/Dimsport aids.
4. It works with KESS, KTAG, FGTECH, BDM100, KTM100, CMD, DIMSPORT AIDS, and othe ECU chip tuning tools.
5. It is easy to use, much better than the old bdm frame.

Tip:
No PCB in this package! LED works for 12V. After you connect with the probe, disconnect 12V battery for LED, it will work.The probe pin is adjustable.

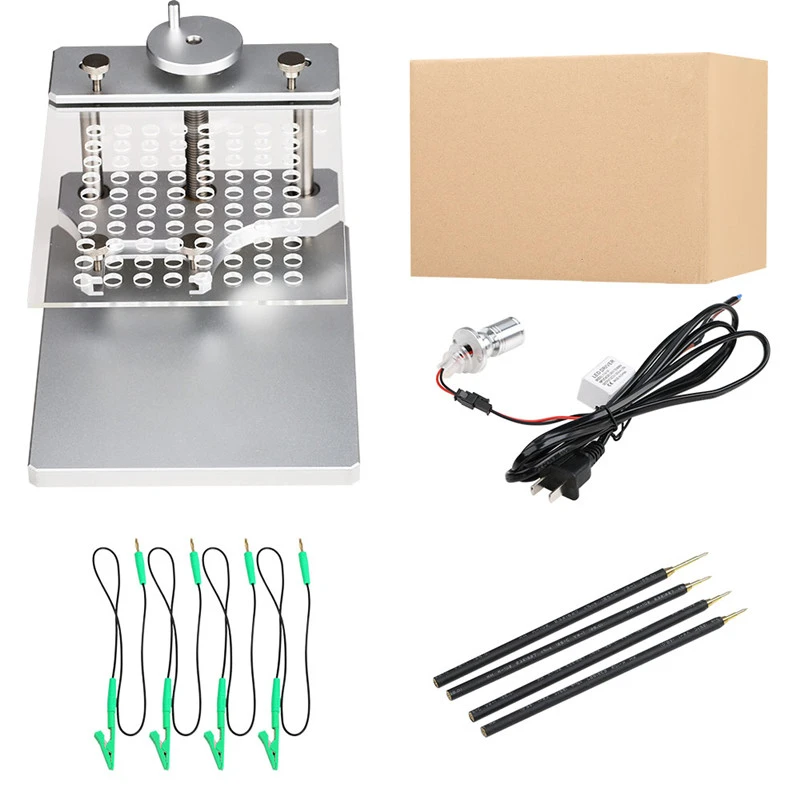

Package List:
1pc x BDM frame
1pc x Bdm frame with LED (Made by a Acrylic board)
4pc x Cable for Probe
4pc x Probe
Note: No PCB Board in the Package

BDM Frame Adapter install Steps:
