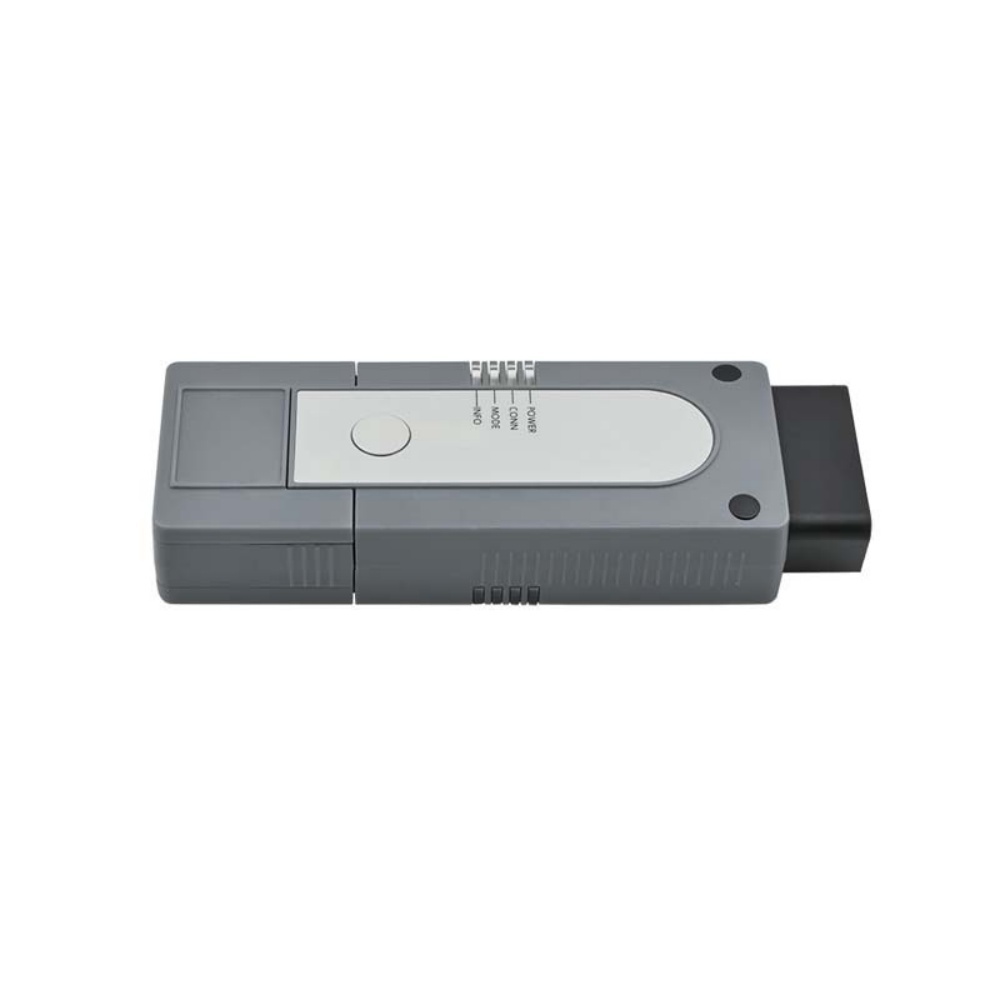

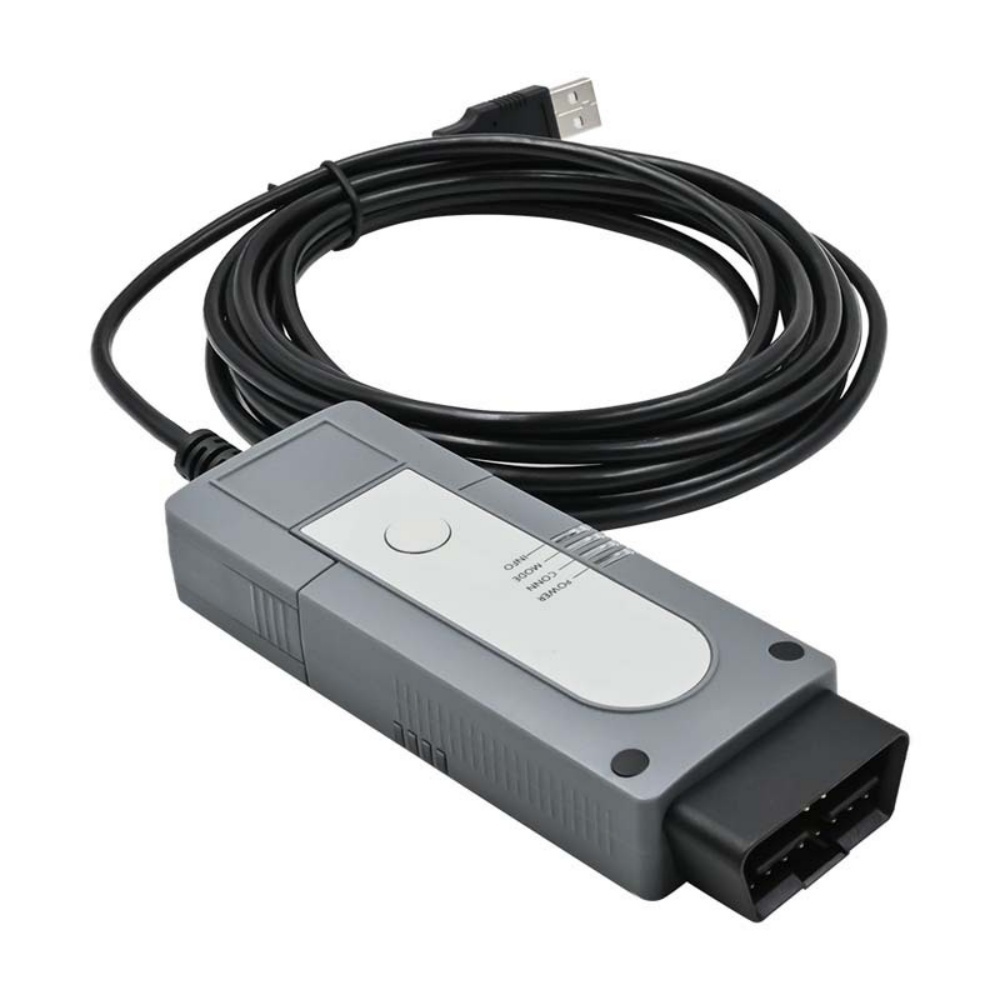

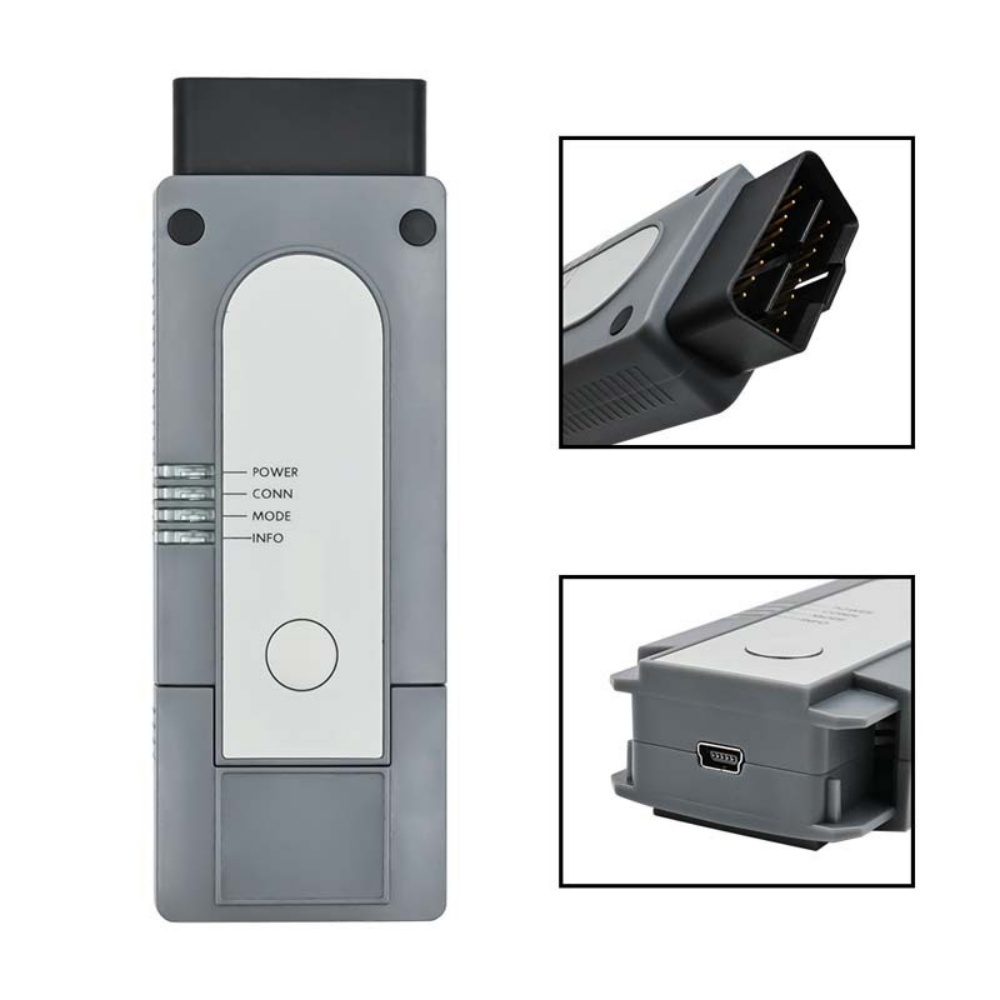

Latest VAS 6154A ODIS WIFI VAS6154A for VW Audi Skoda diagnostic car tools Support CAN FD DoIP Protocol
VAS 6154A Description:
VAS6154 is the latest VAG full system diagnostic and programming interface for VW AUDI, which can read and clear code, dynamic data flow, programming,coding, and personalized settings,including maintenance information systems, technical briefings, circuit diagrams, component drawings, diagnostic guidelines, etc.The latest software is ODIS V23, can support WIFI and USB Connection, also can work with VAS6150 and VAS6160A.
VAS 6154A Notice :
1.Software is too large, the available capacity of the computer C drive should be at least more than 30G
2.Please install on WIN10
3.We provide after-sale service for VAG series models
For other brands models, you need to get it work by yourself !
4.It supports online function, but you need to get online account by yourself !
5.two software as free gifts :
U Stick is software ODIS V23.01 and Engineering software V17.0.1
(Only This new 6154A can support newest software ODIS V23.01 and Engineering V17.0.1 )
VAS6154A Highlights:
1. Fully replace the OEM tools like VAS 5054A and VAS 6154
2. Compatible with OEM software of ODIS
3. Support UDS protocol, support WIN10, Latest ODIS Software Version V23.0.01, Engineer Software Version V17.1
4. Supported Car Models: VW, AUDI, SKODA, SEAT Bentley and Lamborghini from 2001-2023
5. Support both USB and WIFI connection to PC.
6. With a Type-C USB connection, runs Faster.
7. Use the original drivers. Firmware/License Free update.
8. Support online coding and programming, need an original account（we dont offer online account , you should buy it yourself）
9. Working with original drivers.
VAS 6154 Advantage：
No need to install driver
NO third-party device manager software is required
lPlug and play like original6154A
With base station/hotspot mode switching button
VAS6154A Support service v9.10/v10.0/v11.0/V23.01+, Support Engineer v14.1/v15.0/v16.0/v17.0.1+

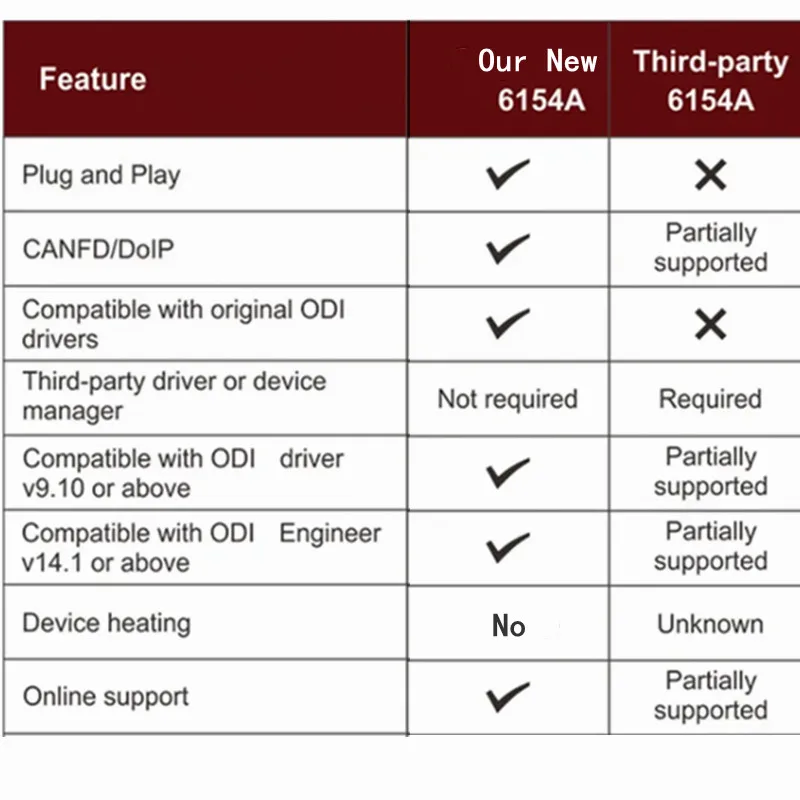

Differience Between Our New VAS 6154A and Other VAS 6154 ?
VAS6154A Supported protocol
ISO-9141 K-Line
ISO-14230-2 K-Line
ISO-15765-2016（CANFD）
ISO-11898 DWCAN
VAG TP16 CAN（SAE J3054）
VAG TP20 CAN（SAE J2819）
VAG KWP1281（SAE J2818）
ISO13400-1/2/3/4
VAS 6154A Compatible car model: It is compatible with all Volkswagen vehicles from 1995 onwards, including new features and upcoming models.
VAS 6154A Support Covered model:
For VW: 1995Y-2023MY+
For Audi: 1995MY-2023MY+
For Seat: 1995MY-2023MY+
For Skoda: 1995Y-2023MY+
For Bentley: 1995MY-2023MY+
For Lamborghini: 1995MY-2023MY+
For MAN: 1995MY-2023MY+
VAS 6154A Functions:
– Estimated remaining times are shown for ECU flash operations.
– Diagnostic protocol contains interruptions of GFF sessions, extended measurement values, improved ECU communication view,used diagnostic hardware, connection type of diagnostic hardware, operating system, the hotfix used and submissions of support requests
– The measured value display has been improved.
– Documents in GFF are displayed in separate windows.
– One message box will be shown at the beginning of the test drive mode. – GFF hotfixes can be integrated during diagnostic sessions.
– Danger messages have been revised.
– Stopping of diagnostic sessions may be interrupted.
– Automatic deletion of autosave diagnostic protocols after successful transmission.
– Selection of PassThru diagnostic hardware has been improved.
– Service Software update has been stabilized.

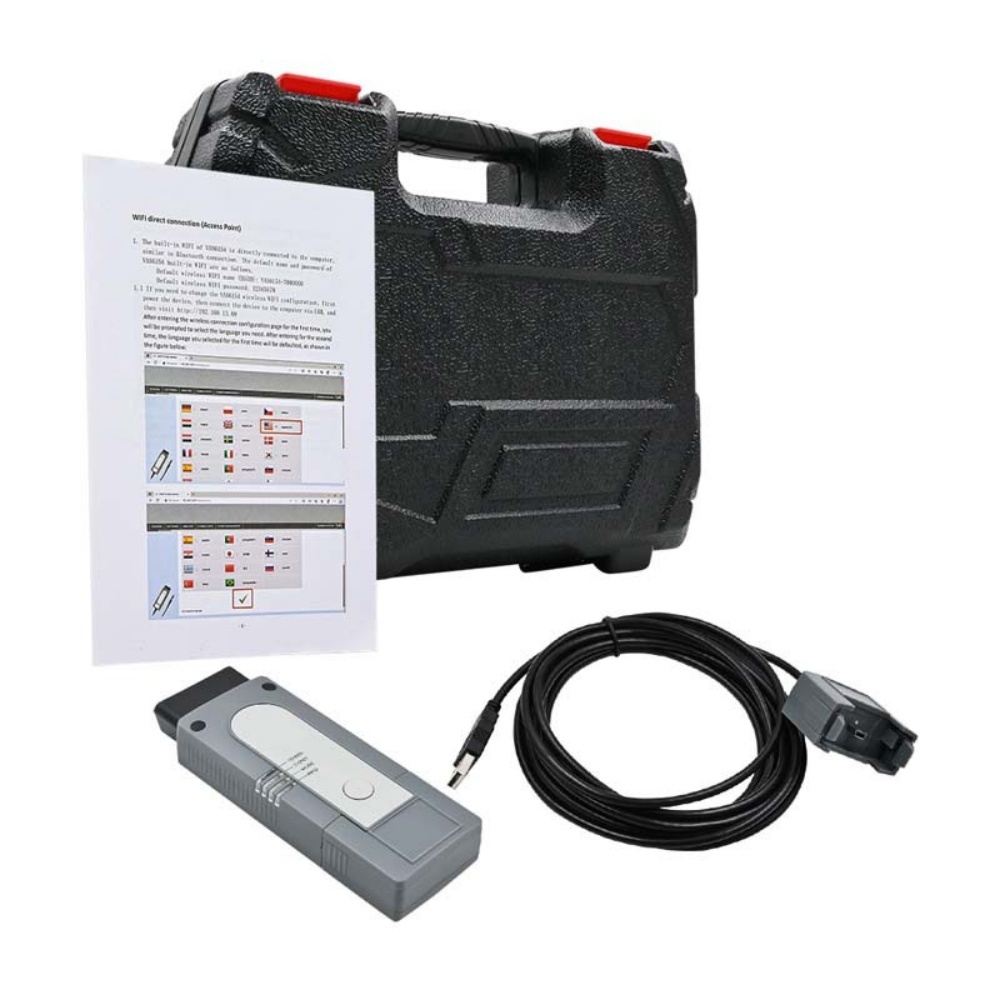

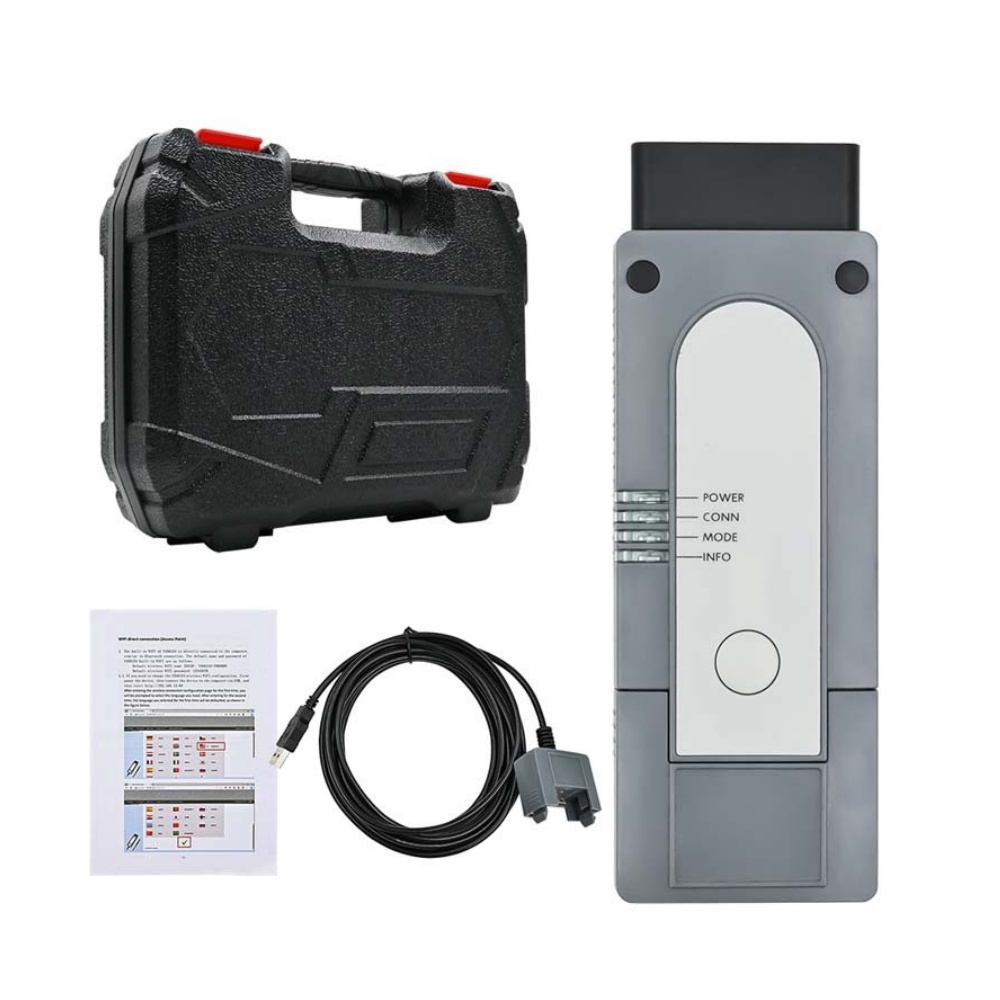

VAS 6154A Package contains:
1 x VAS 6154 diagnostic interface
1 x USB cable
1 x Connecting instructions
1 x Ruggedized Case
