GM Tech2 Tech 2 GM Diagnostic Scanner with CANDI interface and TIS2000 Software Works for GM/SAAB/OPEL/SUZUKI/ISUZU/Holden
GM Tech2 Scanner Highlights:
1. Update: via 32MB Software Card, when newer version released, just buy a 32MB memory Card to update
2. Year Coverage of Diagnosis: from 1991 to 2014, With Help of Tis2000 Software, It Can Do Programming for Cars Before Year 2007
3. Package lighter, cheaper shipping cost and easy for carry
4. Supports online programming function if you have online access account
5. Work on Trucks with truck adapters
6. GM tech2 come with 2 CD's. If you don't have cd player , you can free download TIS2000 and GM tech2 user manual from this link : https://mega.nz/folder/wJMl2KDD#htHaRNi28_oC_33t5Prx8Q
7. Tech2 for GM Software Version ( Standard Package doesn't including the 32MB memory card. If you have the card and software, you can choice Option 1. If you don't have the card and the software, you have to select one of the software.)
For GM
GM - English 33.004 1991-2014
GM - Spanish 33.002 1991-2014
GM - Germany 32.007 1991-2013
GM - Japanese 32.006 1991-2013
GM - French 32.007 1991-2013
GM - Italiana 32.007 1991-2013
GM - Portuguese 32.002 1991-2013
GM - Korean 32.002 1991-2013
GM - China 32.002 1991-2013
For SAAB
SAAB - English V148.000 SAAB 9-3(9400)1998-2003 9-3 Sport (9440)2003-2011 9-5(9600) 1998-2010
SAAB - English V44.000 SAAB 900 1990-1998 9000 1988-1998
For OPEL
OPEL - English Newly Update to V180 1997-2014
OPEL - Italian Newly Update to V180 1997-2014
OPEL - Polski Newly Update to V180 1997-2014
OPEL - German Newly Update to V180 1997-2014
OPEL - Turkish Newly Update to V180 1997-2014
GM Tech2 Card Opel Software Update to V180 Support Cars from the Year 1997 to 2014
For SUZUKI
SUZUKI - English V01.210.020
For ISUZU
ISUZU - English CAN-BUS V180 2006-2015 (CAN-BUS support car models after 2010)
ISUZU - English K-Line V11.680 1996-2014 (K-line support car models from 1996 to 2014)
For Holden
Holden - English V149.000 1999-2013 (For North American Area Only)
Holden - English V147.000 1999-2012 (For Australia)
TIS2000 software only can work with XP system, it can not work with window 7, window 8 or window 10 system.
7. Multi-language: English/ Italian/ French/ Portuguese/ German/ Spainish/ Korean/ Japanese/ Thai/ Chinese
Please pay attention that We offer the TIS 2000 (GM) free to customers. However, we can't teach the customer how to do programming. This requires a professional auto mechanic to do that.
If the GM TECH2 can be used for diagnosis, it means that there is no problem with the communication, and you can perform programming functions normally.
GM Tech2 Features:
1.Authentic GM software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model GM vehicles.
2.Support for on-board diagnostics on all GM systems 1992 thru 2011.
3.Removable hardware modules provide insurance against scan tool obsolescence.
4.Large, easy-to-read backlit screen.
5.RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash.
6.Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review.
7.Ability to view the status of vehicle diagnostic tests as they run.
8.Bi-directional The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.

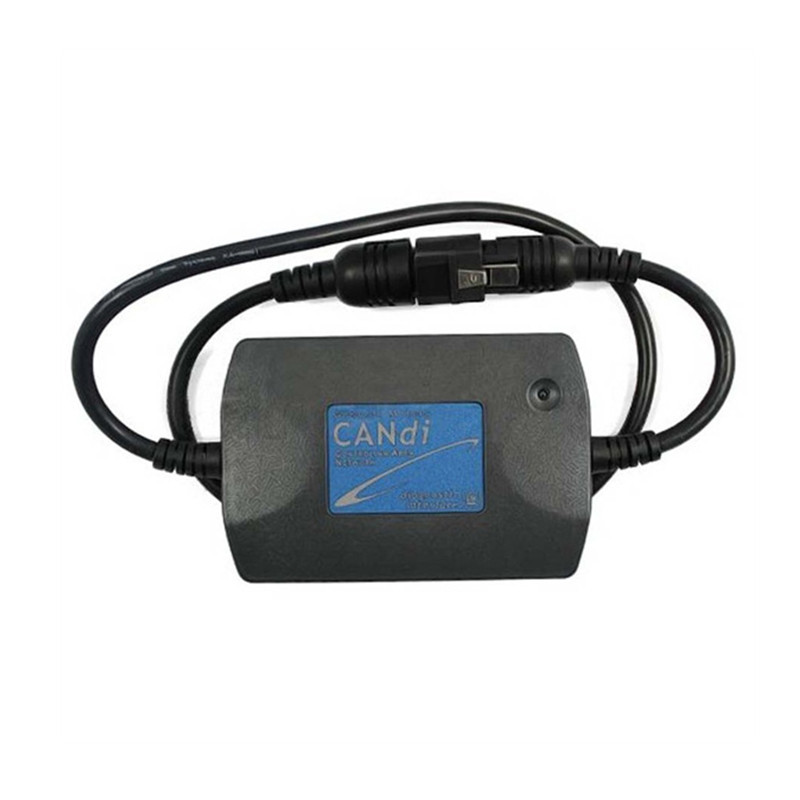

An industry change in protocol from OBD II to Controller Area Network (CAN) has begun. In order to perform diagnostics on a vehicle that uses the CAN interface; you will need the Tech 2 Flash and a CAN diagnostic interface module. The module connects between the Tech 2 Flashs diagnostic link cable and the OBD adapter. Once the module is connected, it can be used on all GM vehicle applications,even those vehicles using other platforms such as OBD I and OBD II.
The Following GM Vehicles Utilize The CAN Interface:
05 Buick Allure (3.6L)
05 Buick LaCrosse (3.6L)
05 Buick Rainier (5.3L)
04-05 Buick Rendezvous (3.6L)
04-05 Cadillac CTS (3.6L)
04-05 Cadillac SRX (3.6L / 4.6L)
04-05 Cadillac XLR (4.6L)
05 Cadillac STS (3.6L / 4.6L)
05 Chevrolet Cobalt (2.2L)
05 Chevrolet Corvette (6.0L)
05 Chevrolet Equinox (3.4L)
05 Chevrolet TrailBlazer (5.3L)
05 Chevrolet SSR (6.0L)
04 Chevrolet Malibu (Body/Chassis only)
05 Chevrolet Malibu (3.5L)
05 GMC Envoy (5.3L)
05 Pontiac G6 (3.5L)
05 Pontiac GTO (6.0L)
05 Pontiac Pursuit (2.2L)
gm tech2 dtc
GM Tech2 Specification:

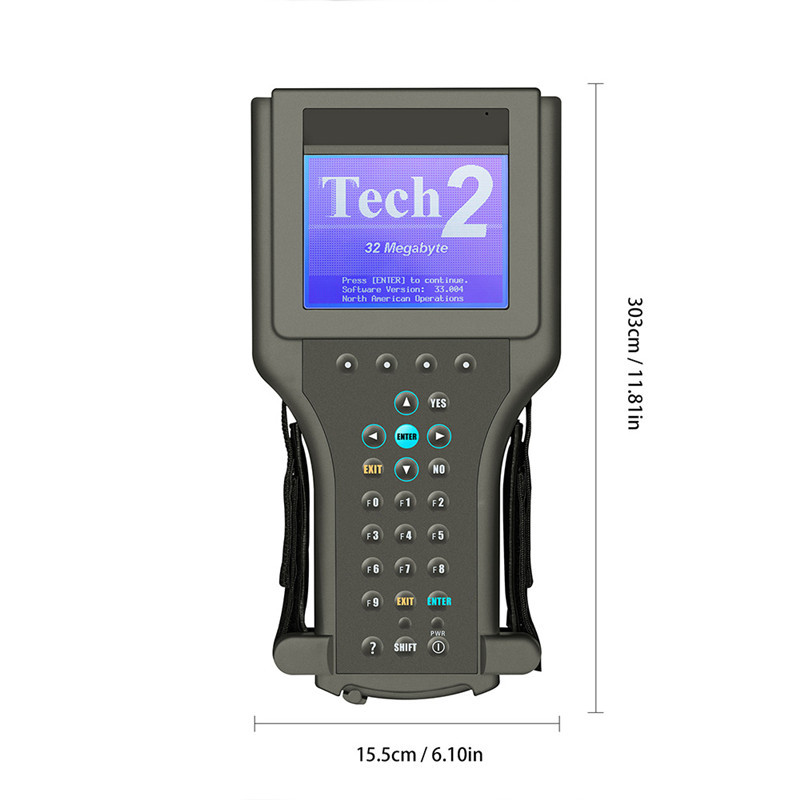

1) Dimensions: 12
2) Microprocessor: 32 bit,16 MHz
3) Memory: 32 MB flash type II PCMCIA. Type III slot available for future expansion.
4) Communications: Integral RS232 communication port.
5) Screen: 3.8.8 backlit monochrome with full graphics capability: 320,40 pixels. Displays up to 9 vehicle parameters at once .Download Tech2 Brochure (5.2 Mb)
Different between GM tech 2 scanner and GM MDI Scan Tool :
| Content |
GM Tech 2 |
GM MDI |
| Language |
GM-English, German, Spanish , Japanese, French, Thai , Portuguese, Korean
SAAB-English
OPEL-English, Italian , German,Spanish
HOLDEN-English
SUZUKI-English
ISUZU-English |
Multi-language: English, French, German, Japanese, Italian and so on.
Total 30 languages to choose. |
| Update |
Via 32MB Software Card |
can not update |
| Activation |
no need active |
yes |
| Advantage |
cannot plug original software card, but can support original program |
can support software from original factory |
| OS requirement |
no need connect to the PC |
Win XP only |
| Internet connection |
no need connect to the PC |
can not connect to the internet then install the software, because once connect internet, it will remind you update the software |
| Support Car Model |
Cannot support truck, only for cars, Support all GM systems 1992 thru current year. such as GM/ SAAB/ OPEL/ SUZUKI/ ISUZU/HOLDEN |
MDI can test all GM car from 1990-2019year.9 |
| Support programing |
support reprogramming, but need to use with TIS2000 together |
support offline program,such as chevrolet,opel, but not for all cars |

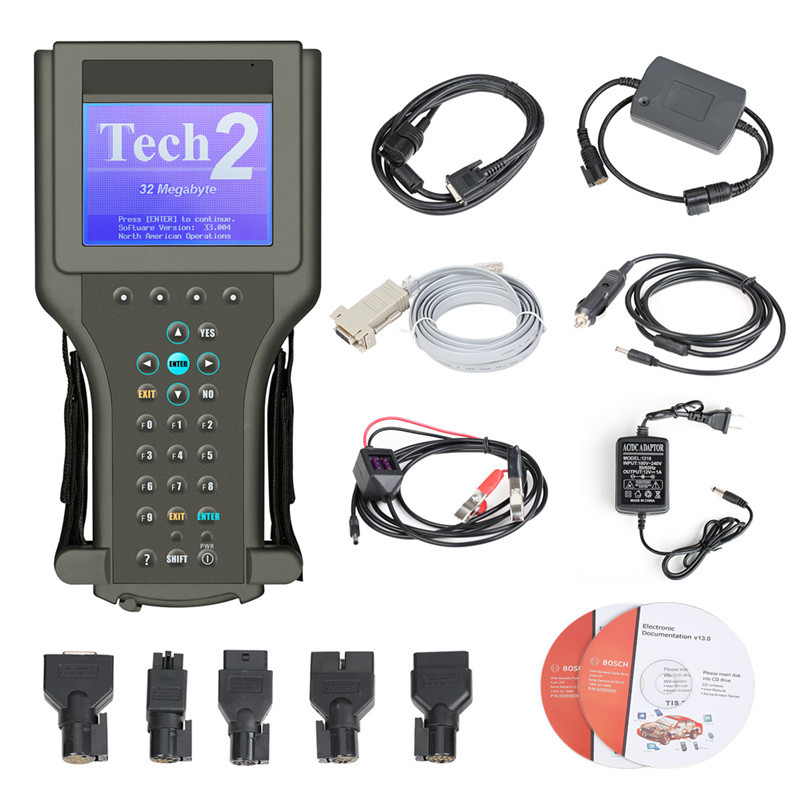

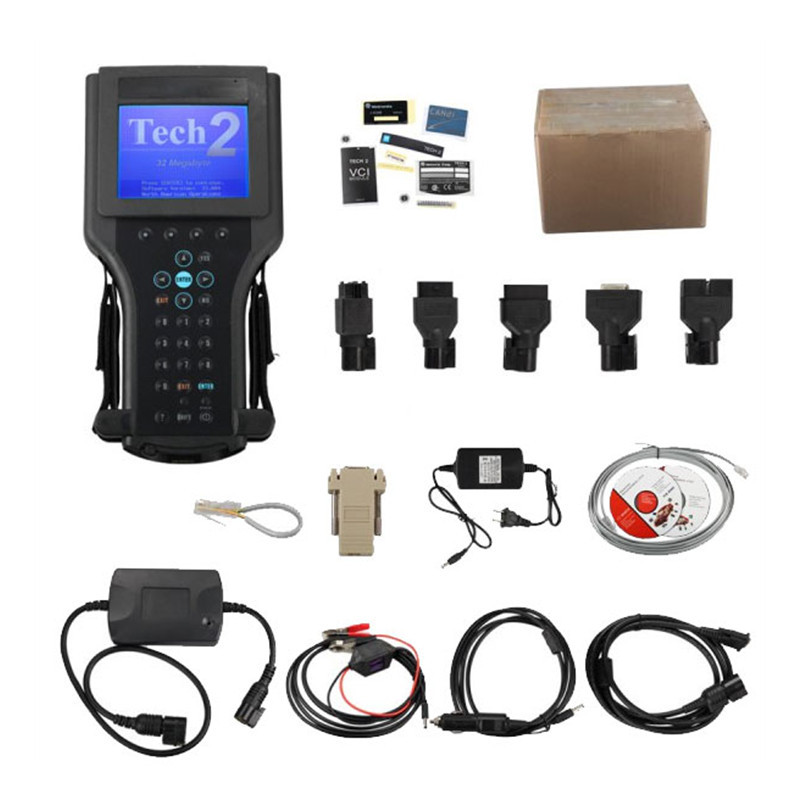

GM Tech2 Package List:
Tech-2 Flash Tester

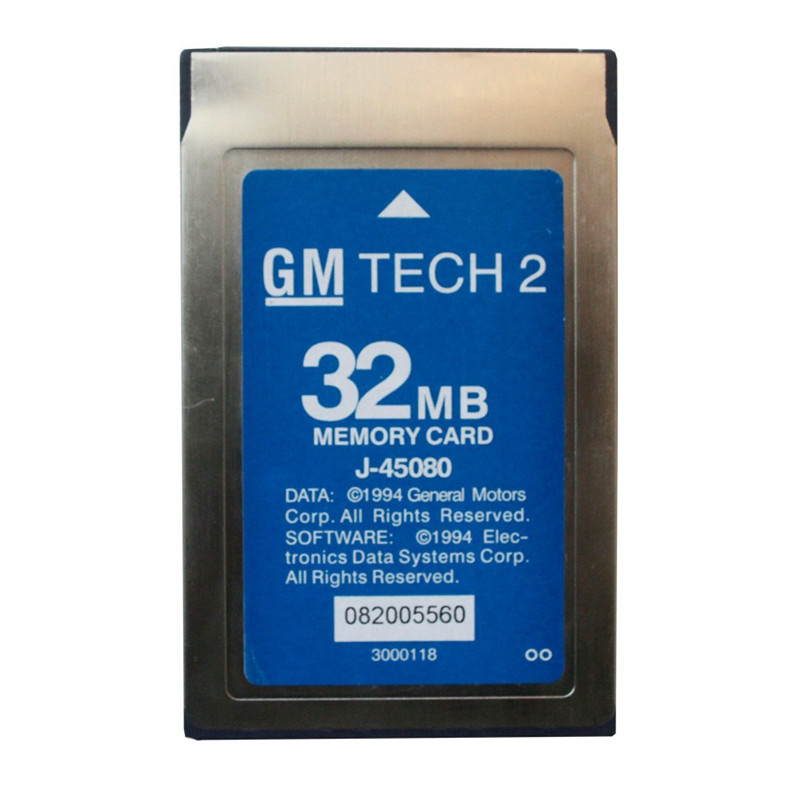

32 MB PCMCIA Card with GM OE Applications
CAN diagnostic interface module(Candi) and instruction sheet download (199.2 kb)
RS232 cable and user manual
RS232-DB9 adapter

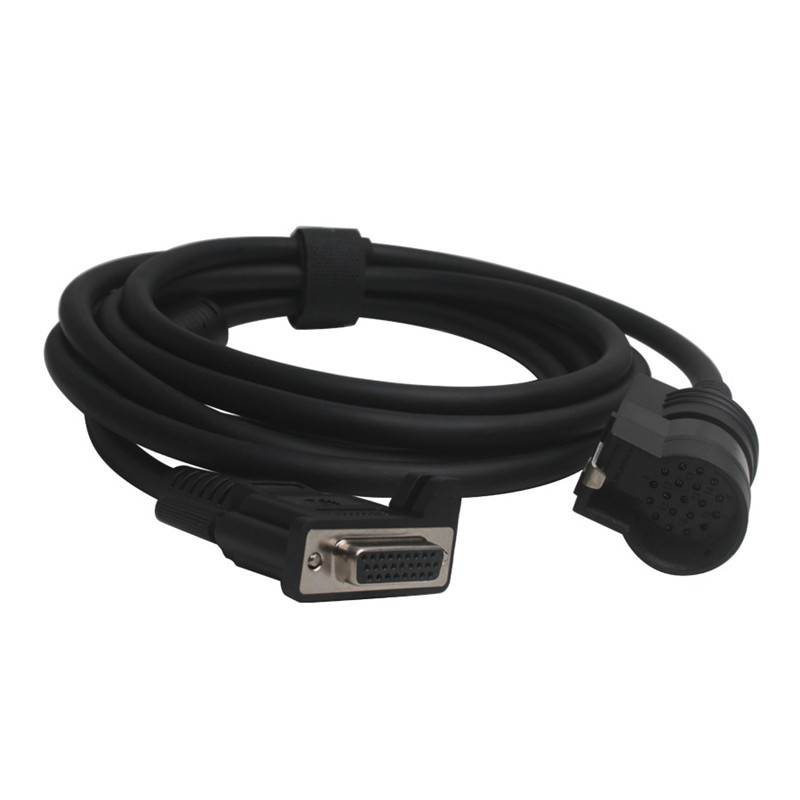

DLC Cable
12V Cigarette Lighter Power Cable

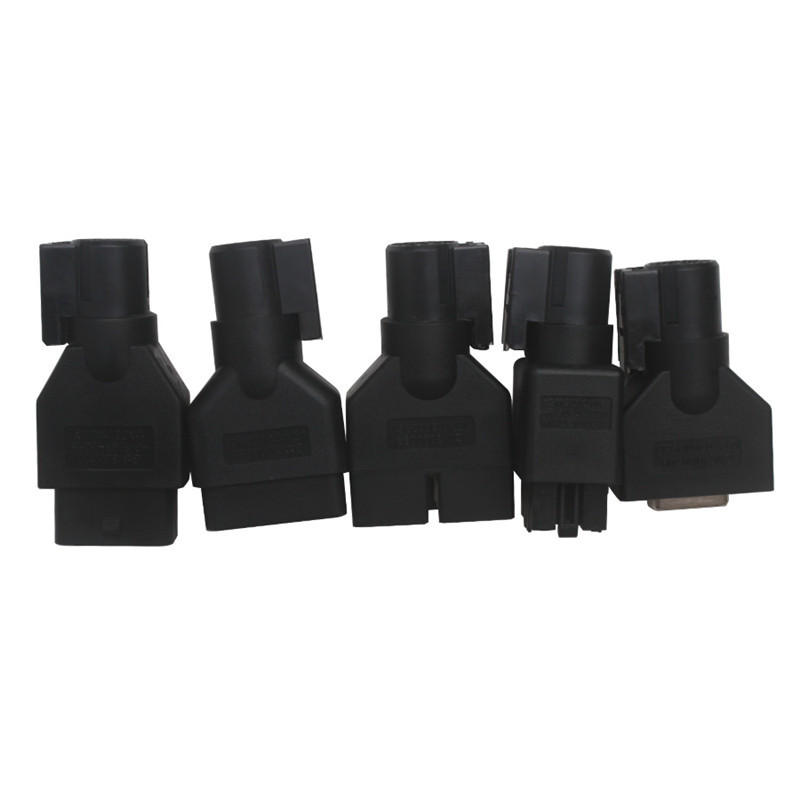

SAE 16/19 Adapter
NAO 12/19 Adapter
Battery Power Cable
carton box
TIS 2000 CD

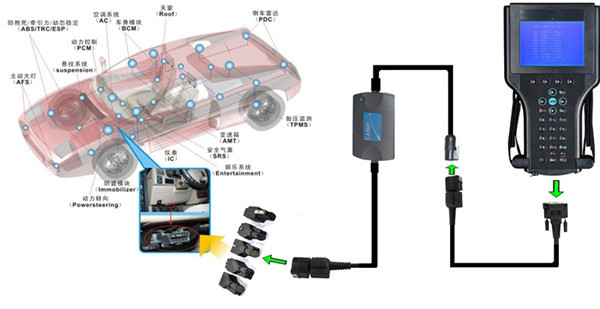

GM Tech2 Connection with Candi interface Picture
GM Tech2 Connection without Candi interface picture
GM Tech2 part of customers' Feedback:
Saabs 9-5 MY 2006 and 9-3 MY 2003 ok.
1999, SAAB 9-5 2,3 t estate diagnosis ok.
2003 SAAB 9-3 FB207 diagnosis ok.
Opel Zafira model year 2005 ok.
Opel signum model year 2006 ok.
ISUZU TROOPER 2000-2007 with isuzu 32MB Card ok.
