Bluetooth VAS 5054 OKI Full Chip VAS 5054A Odis 5.2.6 VW diagnostic tools Support UDS Protocol with VAS 5054A Software
- 5% OFF WITH PURCHASE OVER 2 UNITS
- 10% OFF WITH PURCHASE OVER 5 UNITS
Best VAS 5054A ODIS V5.2.6 Bluetooth Support UDS Protocol with OKI Chip
Top 6 Reasons To Get VAS5054A:
1. With OKI Chip
2. Support UDS Protocol
3. Multi-languages:English/Japanese/Portuguese/Romanian/Korean/Dutch/Polish/Turkish/Spanish/French/Italian/Croatian/
Danish/German/Swedish/Finnish/Slovenian/Czech/Russian/Greek/Chinese
4. Supported Car Models: VW, AUDI, SKODA, SEAT Bentley and Lamborghini
5. Bluetooth Version(Bluetooth Connection Password: 082145725)
6. Update By CD
Note:
1. VAS 5054A hardware support online coding, but our software does not support. Need get software from VW dealer for online coding function.
2. If you need the software for Lamborghini, Bentley, please leave us information when order.
VAS 5054A ODIS Computer Windows System Requirements:
Windows System Language: American English
Win 7 Professional version
System C:// have to be NTFS format
C:// need to have at least 40GB space for installing VAS 5054A
VAS 5054A Descriptions:
The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.
No cables are needed for vehicle diagnostics using the VAS 5054A.
The range of the wireless Bluetooth connection is 2 to 5 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.
VAS 5054A Specification:
The vehicle protocols are handled directly in the VAS 5054A.
This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS 5054A via Bluetooth or USB.
Access Via Bluetooth: After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.
Access Via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.
VAS 5054A Vehicle List:
Support AUDI Models:
Audi A3 2013
Audi Q3 2012
Audi A4 2008
Audi A5 2008
Audi Q5 2009
Audi Cabriolet 2003
Audi A6 2011
Audi A7 2011
Audi Q7 2007
Audi A8 2010
Audi TT 2007
... ...
Supported Volkswagen-Models
6X/6E - Lupo 1999
12 - up! 2012
9N1/9N3 - Polo 2002
6R - Polo 2010
60/61 - Polo 2010
1J - Bora 1999
1J - Golf 1998
1J - Golf 1998 only USA/Canada
1K - Golf 2004
Supported Volkswagen Nutzfahrzeuge-Models
2K - Caddy 2004
7H/7J - Transporter 2004
2C - Caddy 2011
7E/7F - Transporter 2010
2H - Amarok 2010
Supported Seat-Models
AA - Mii 2012
7N - Alhambra 2011
7M - Alhambra 2001
3R - Exeo 2009
5P - Altea 2009 > PA
5P - Altea 2004 >
5P - Altea XL/Freetrack 2009 > PA
5P - Altea XL/Freetrack 2007
Supported Skoda-Models
Fabia 1999
Fabia 2007
Octavia 1997
Octavia 2004
Octavia 2013
Roomster 2006
Rapid NA (Indien) 2012
Superb 2001
Superb 2008
Yeti 2010
Rapid NH (EU) 2013
Citigo 2012 ... ...
Supported Bentley-Models
Continental GT 2004
Continental GT 2012
Continental GT Diamond Series 2007
Continental GT Speed 2008
Continental Supersports 2010
Continental Flying Spur 2005
... ...
Supported Lamborghini-Models
Gallardo MY09-10-11-12
Aventador LP700-4

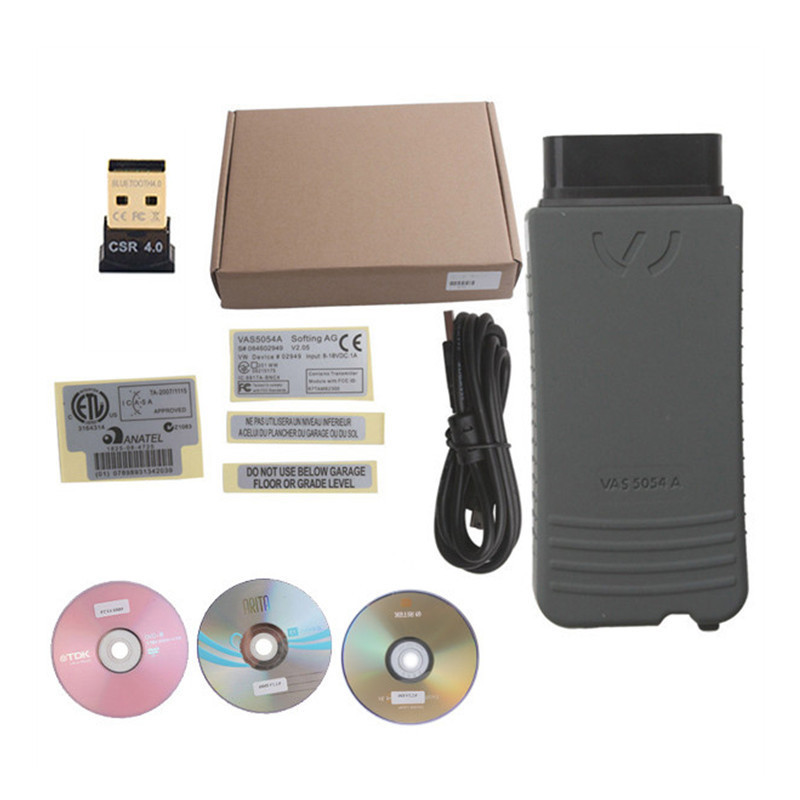

1 × 5054A main unit with OKI full chip

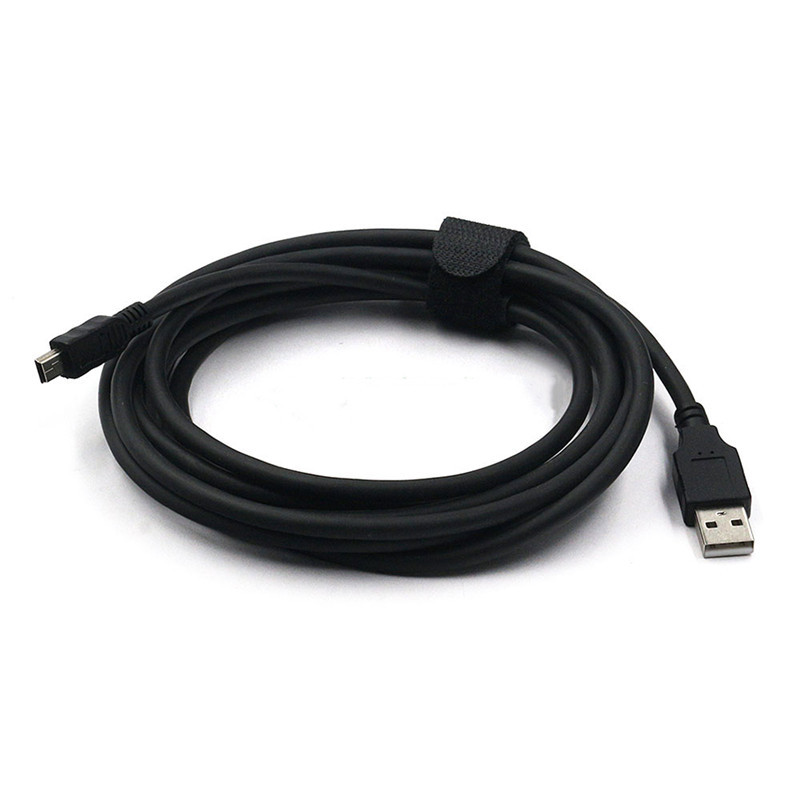

1 x USB cable
1 x Bluetooth Adapter
1 x CD

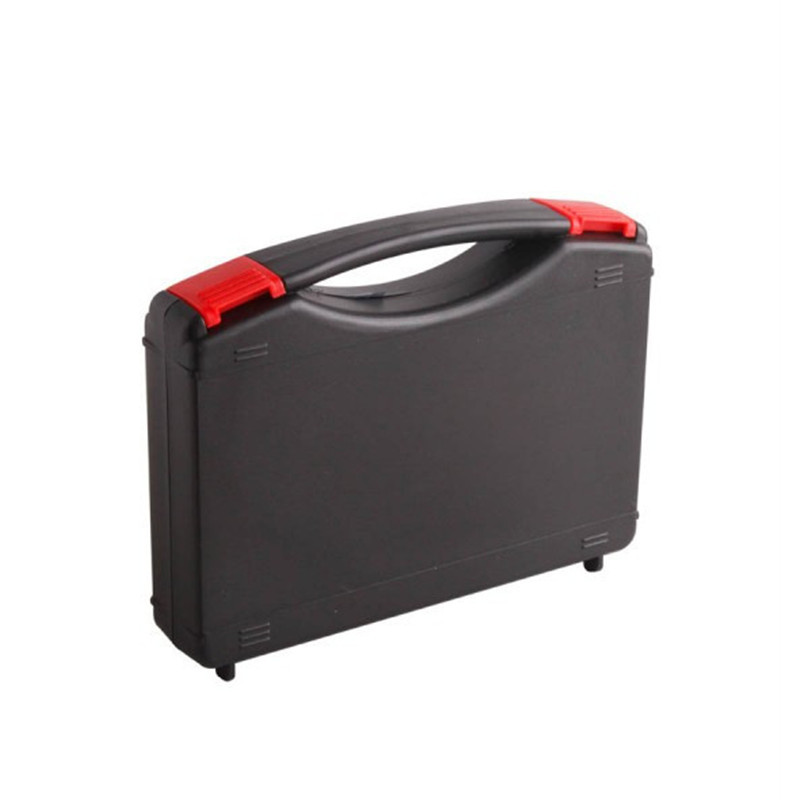

1x Plastic Box

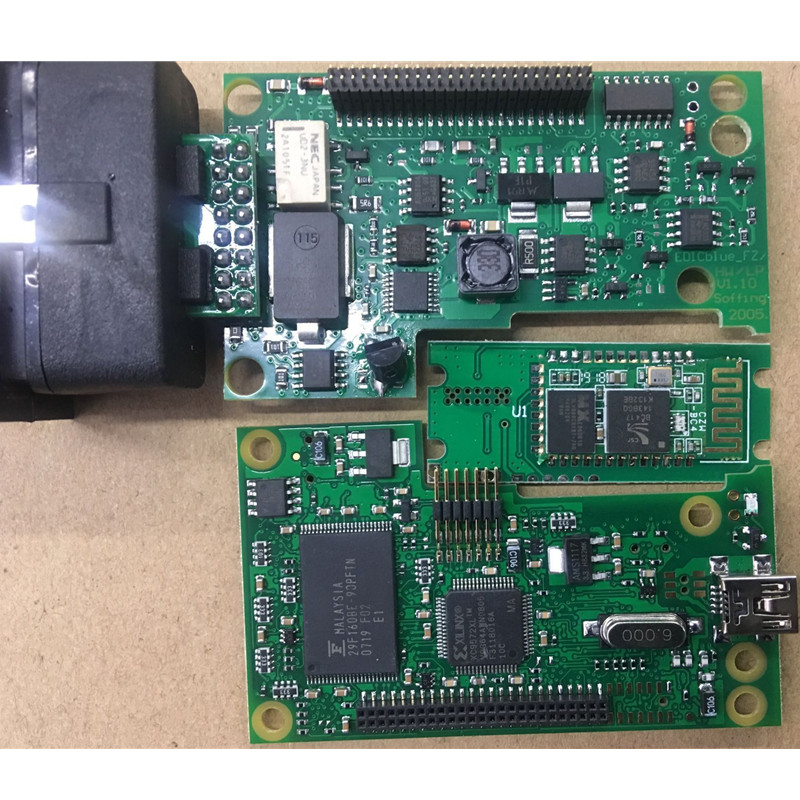

VAS 5054A PCB Board Display:
