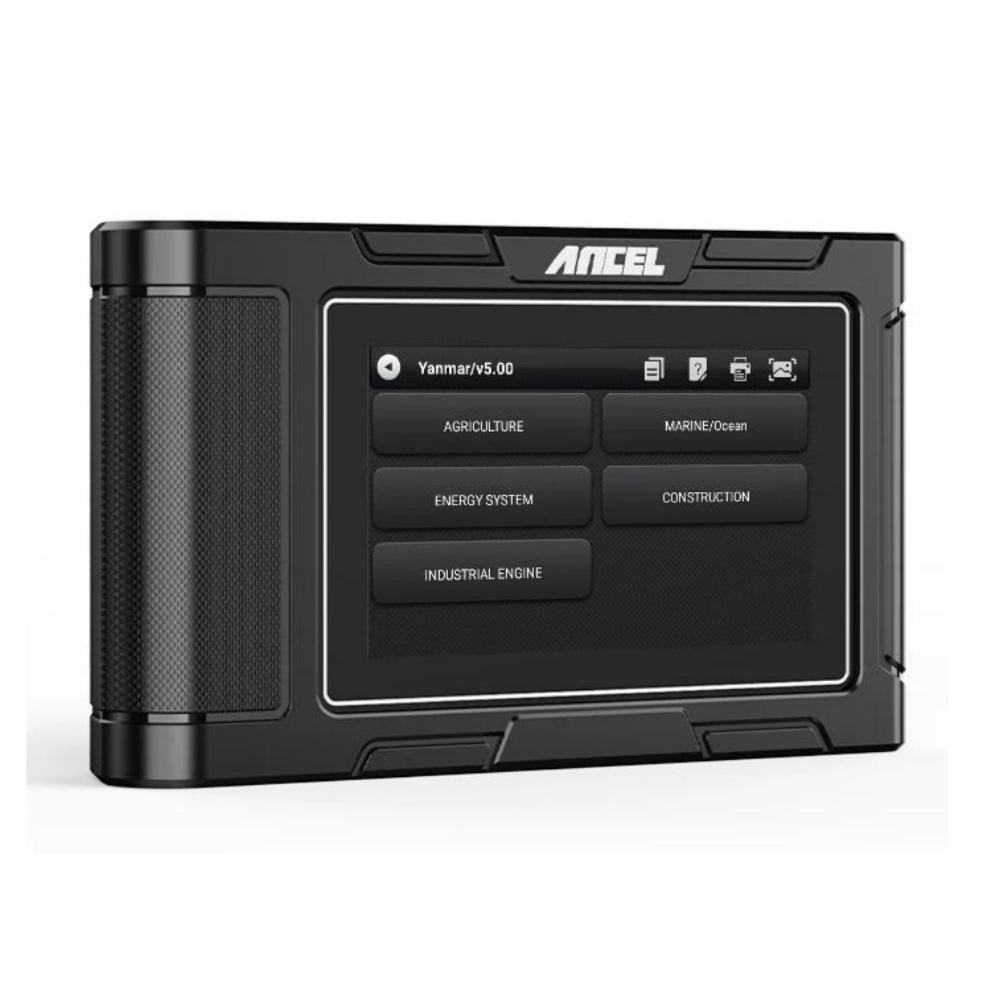

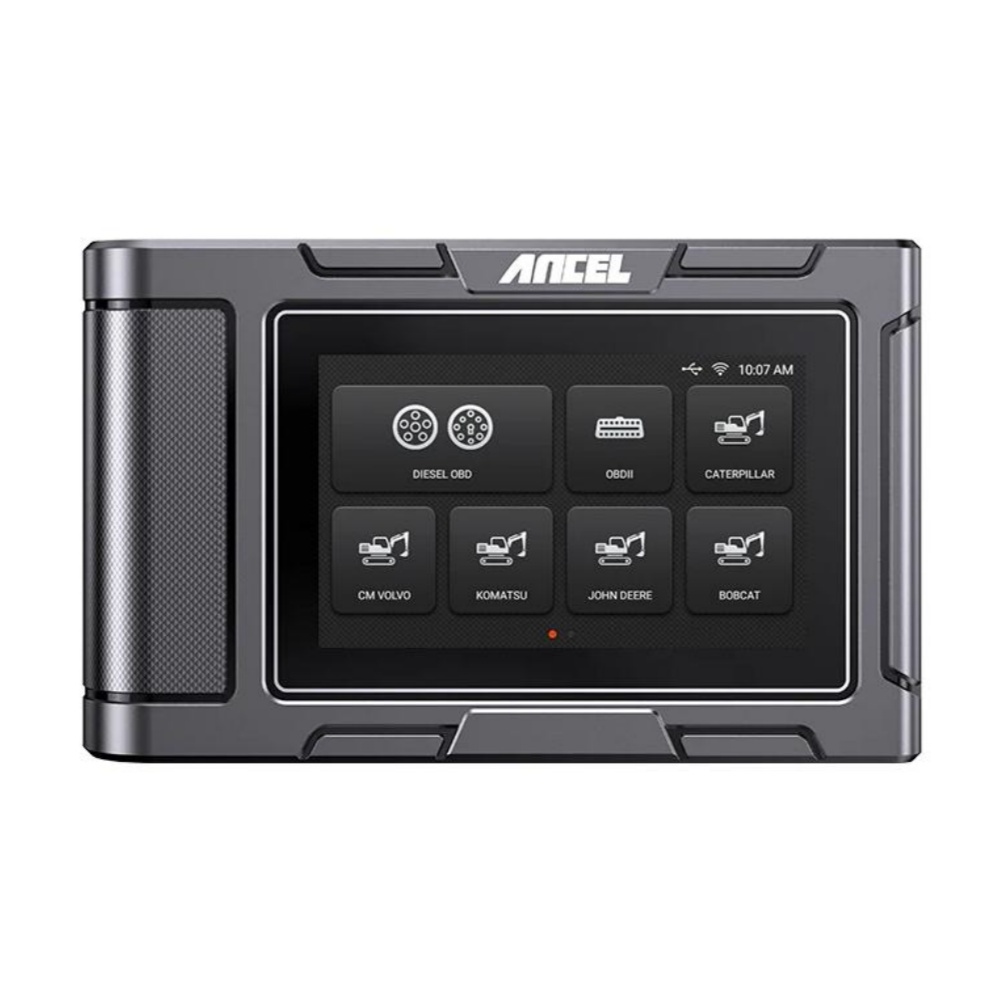

ANCEL HD3600 Professional Truck Diagnostic Tool for Construction Machinery
Why You Need an ANCEL HD3600 Scanner ?
There are many expensive heavy truck scanners on the market today, but they can only diagnose truck systems and do not provide professional diagnostics for construction equipment.
The ANCEL HD3600 is currently the only scan tool that can diagnose both construction machinery and heavy trucks. It is a construction vehicle diagnostic tool based on the Android tablet and is our answer to people who need a stand-alone, full-featured scan tool for work in agriculture, construction, mining, and other off-highway applications.
It provides all-system, in-depth diagnostics for nearly all construction equipment and machinery, such as loaders, tractors, dozers, street sweepers, and excavators, as well as other utility vehicles and equipment, and also features full OBD diagnostics. Detect hidden issues before they escalate, so you can take smart maintenance action!
In addition, it can perform DPF regeneration, extend Your Equipment’s Service Life-Monitor critical systems in real time, and perform preventive maintenance to keep your heavy machinery running longer, saving you costly downtime!
ANCEL HD3600 DPF Regen：Fits for Caterpillar, John Deere, Volvo, Bobcat and Komatsu
Why need to force DPF regeneration?
Regeneration, or regen, of the DPF filter, is the process that burns the soot accumulation that is inside the DPF filter. An unmaintained DPF runs your vehicles unnecessarily hard and less efficient. A clogged DPF filter is also tied to your fuel mileage and can cause your truck to feel sluggish. If you can no longer start a regen then you will eventually get stuck in a derate which will then lead to an engine shut down.
In which situations is DPF regeneration required?
The exhaust backpressure sensor is replaced.
The PM trap is removed or replaced.
The fuel additive nozzle is removed or replaced.
The catalytic oxidizer is removed or replaced.
The DPF regeneration MIL is turned on and maintenance is performed.
The DPF regeneration control module is replaced.
Why to choose HD3600 to perform DPF regeneration?
1) Make sure your construction machinery vehicle has enough power again (Suitable for Caterpillar, Volvo, John Deere, as well as Bobcat and Komatsu equipped with Cummins engines.)
If the diesel filter is clogged, the vehicle will not be able to fully use the fuel, resulting in insufficient mileage. Therefore, it is very important to clean the DPF filter regularly, which only HD3600 can do.
2) Save a lot of maintenance costs:
It is well known that maintenance costs at least 500-2000 dollars, but if you do the work yourself, your long-term savings will be enough to buy a new car.
3) Other benefits of cleaning your DPF filters:
Better MPG, better gas response, less frequent regenerations (passive), longer DPF life, less downtime...
PIN Detect
This function mainly measures the voltage of 16 PIN of OBD diagnostic interface, and judges the pin position of K- line and CAN line. After connecting the OBD interface of the vehicle, click the main interface "Tools" to select pin detection. The program automatically measures the 16pin voltage of the OBD diagnosis interface, and judges the pin position of K-line and can line.
Note: The test requires ECU no response, please ask the customer to check whether the diagnostic interface has voltage

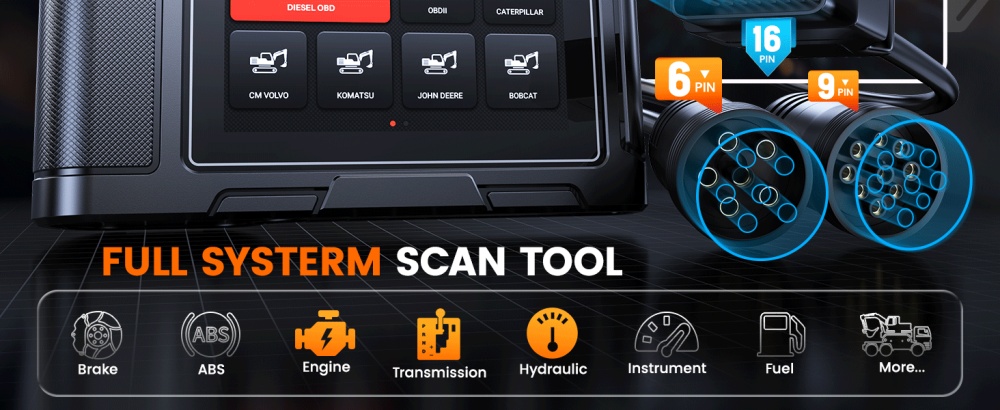

OEM-Level All system Diagnostic Scanner
HD3600 diesel scanner can not only support full system scanning of construction machinery vehicles conforming to standard diesel OBD protocol, such as engine, ABS/EBS, transmission, body controller, chassis controller, instrument panel system, cruise control, gateway, etc. , also supports all system diagnostics for heavy duty trucks. Meet the diagnostic needs of a variety of models!
OBD-Level Diagnostic on Engine
Retrieve ECU Information: Read and display the control system module information detected from ECU.
Read Fault Codes: Read the fault code information retrieved from the vehicle system module.
Erase Fault Codes: Clear the fault code and freeze frame data retrieved from the vehicle system module.
Review Live Data: Read and display the real-time operation parameters of the current system module.
Graphic: View the real-time operating parameters of the unit in the data stream waveform graph mode, and select [List] to return to the numerical display state.
Live Data Stream: Compare the data steam. Select a saved data file of the same vehicle type in the pop-up dialog box, and select [OK] to return, and then an additional column "CMPR values" in the data stream interface.
Save: Save the current data stream (for subsequent data stream comparison)
Superior compatibility for 12v & 24v construction machinery vehicles and heavy duty trucks.
Construction, marine, agricultural, and other construction equipment and machinery that meet standard diesel OBD protocols.
Such as excavators, dozers, scrapers, loaders, graders, mixer pumps, tower cranes, wheeled cranes, crawler cranes, construction hoists, winches, tower cranes, concrete mixers, concrete dump trucks, small equipment such as steel bar cutters, steel bar straighteners, hand-pushed concrete dump trucks, chain transfer trucks, etc.;
Semi-trucks and heavy-duty trucks that meet HD OBD standard protocols.
Includes delivery trucks, school buses, garbage trucks, long heavy-duty trucks, buses, roll-ons, municipal vehicles, refrigerated and conventional trucks, and all other heavy-duty vehicles.
Ordinary passenger cars, SUV pickups, light-duty trucks that comply with OBDII protocols.
How one-click to activate the ANCEL HD3600?
Step 1: Simply plug into the OBD port on your car and turn the ignition on, after the vehicle power on, the device will automatically startup;
Step 2: Connect WIFI. Go to Settings>WIFI;
Step 3: After successfully connecting to WIFI, go to Settings>Activation, click "Activate".
Note:
1. If the "Activation failed" prompt appears on the screen, please check whether your network connection is normal.
2. Click activate directly to use it, no registration is required.

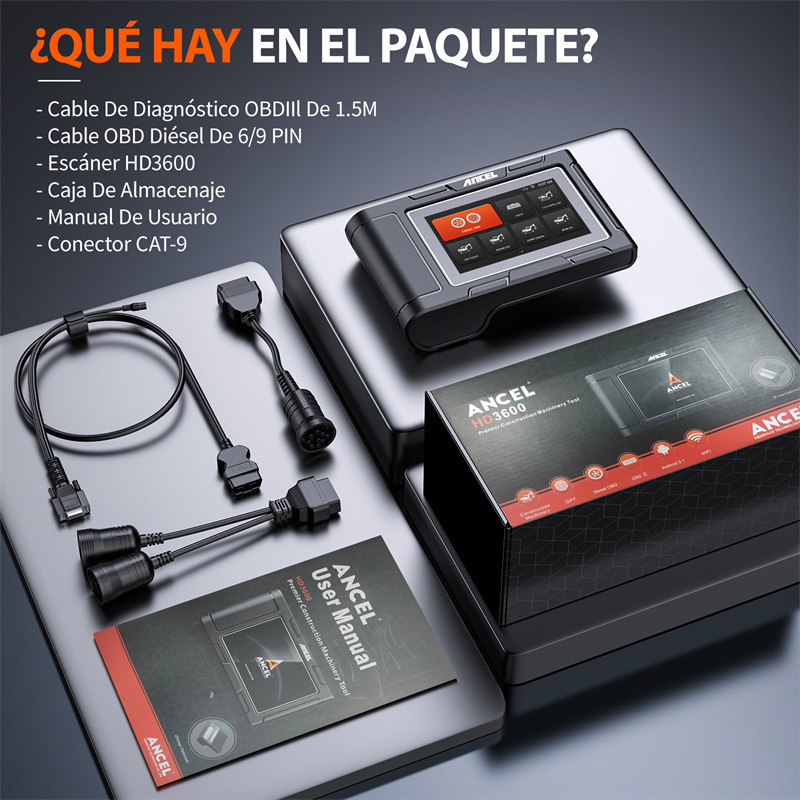

Package List:

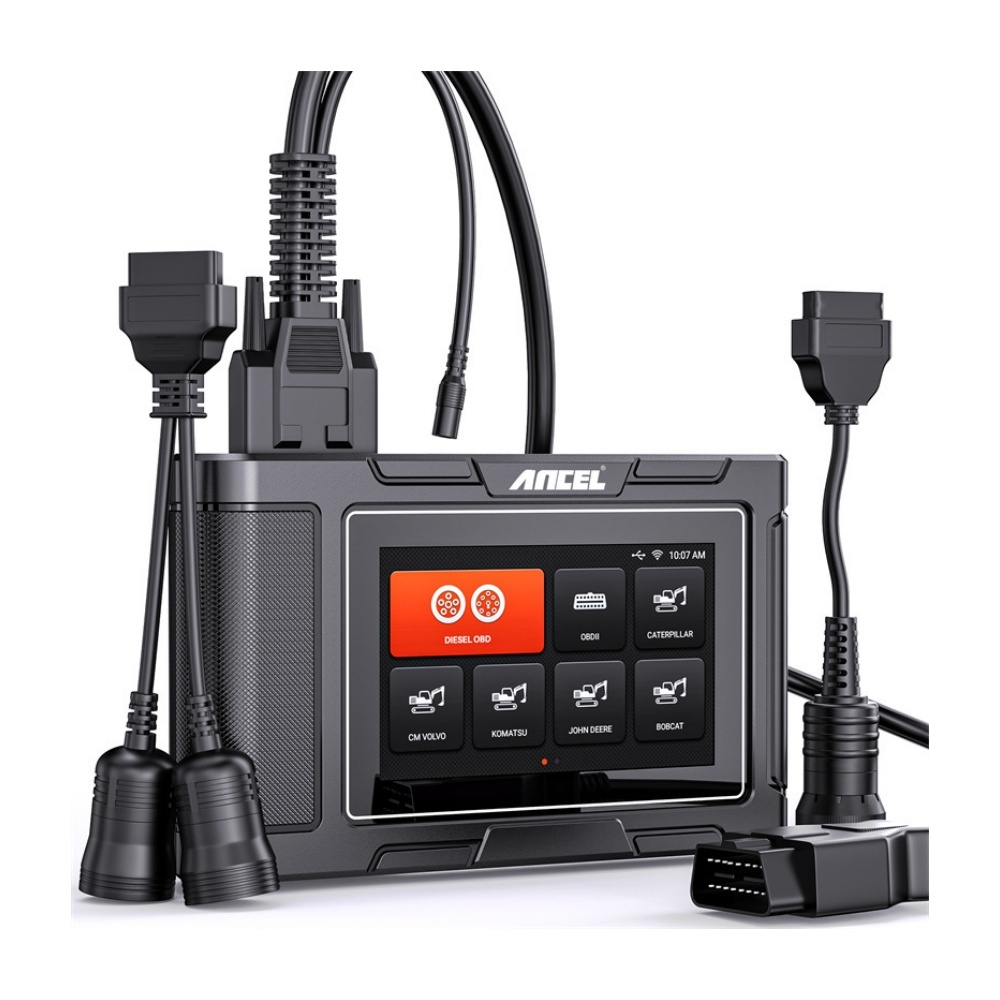

1* HD3600 Heavy Equipment Diagnostic Tool
1* 1.5m OBDII Diagnostic Cable
1* 6/9-pin Diesel OBD Cable
1* CAT-9 Connector
1* User's Manual, 1* Box
