Discover the key differences between MB STAR C3, mb sd connect C4, C5, and C6 diagnostic tools. Learn which Mercedes-Benz scanner works best for your vehicle model (W203, W205, W223, etc.) and make an informed choice.
MB STAR Diagnosis: Differences Between C3, C4, C5, and C6 (2024 Guide)MB star diagnostic tools have evolved significantly over the years, from the MB STAR C3 (legacy system) to the latest MB STAR C6 (modern DoIP/Ethernet support). Choosing the right Benz scanner depends on your vehicle’s model year and required functions.
This guide compares MB STAR C3, MB SD Connect C4, MB SD Connect C5, and MB STAR C6 in terms of hardware, software, compatibility, and performance to help you decide which tool is best for your needs.

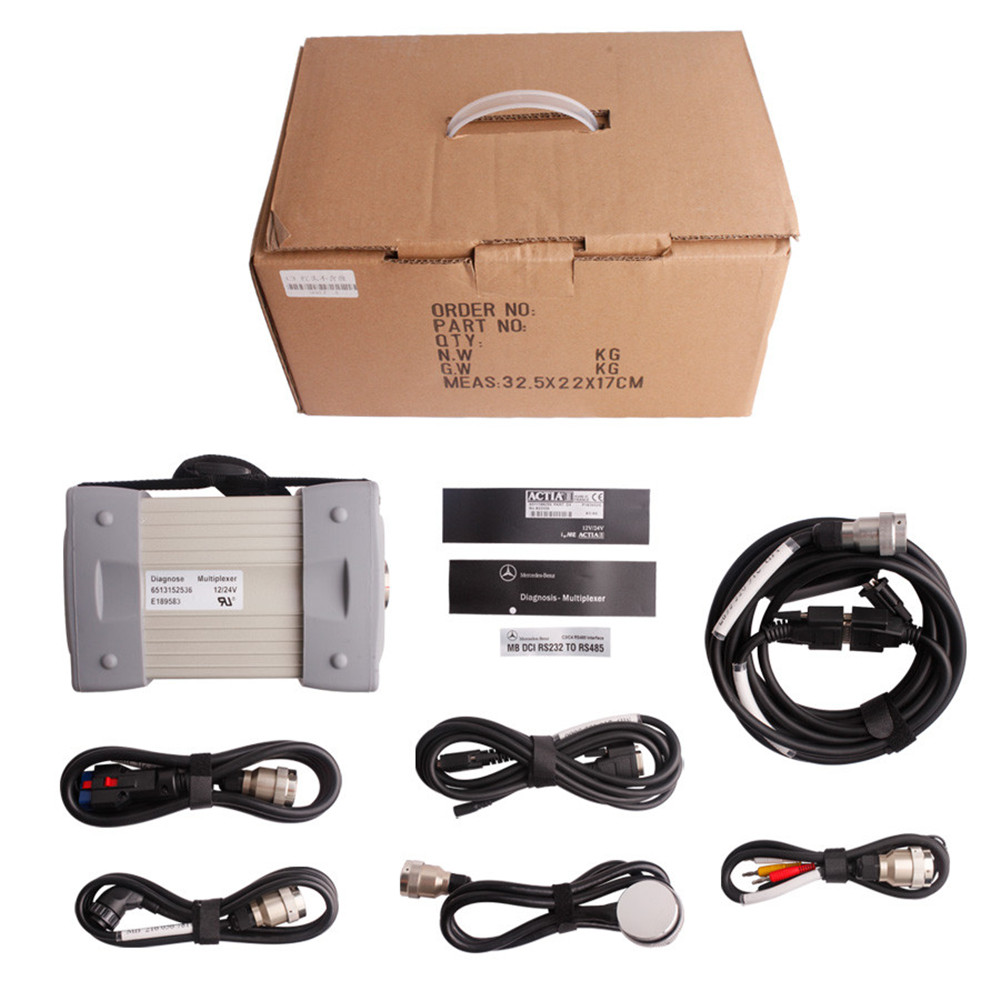

1. MB STAR C3 (Legacy Diagnostic System)
SD Connect MB Star C3 is much better for the old Mercedes Benz and support truck speed limited function (other tools cannot do it).
Star C3 xentry software data latest version is V2015.12 and now stop update anymore so that it cannot support online SCN Coding.
Release Era: Early 2000s (phased out around 2015).
Hardware: Uses a C3 multiplexer (MUX) connected to a Windows PC.
Software: Runs DAS/Xentry (older versions).
Compatibility
✔ Works with older Mercedes models (pre-2015):
W203 (C-Class), W211 (E-Class), W220 (S-Class), W164 (ML-Class).
❌ Not compatible with newer CAN FD/Ethernet-based models (post-2015).
Limitations
Requires Windows XP/7 (not Win10/11 compatible).
No online SCN coding (offline solutions only).
Slow processing compared to newer tools.
MB Star C4 is the hot sell baby Mercedes diagnostic tool with low price and strong functions work stable.MB Star C4 with vediamo and DTS Monaco software support offline programming and can support online SCN coding with online dealer account.MB Star C4 software is keep in update but it cannot support DOIP prototol.
Release Era: ~2015-2018 (replaced C3).
Hardware: Compact SD Connect C4 interface.
Software: Xentry Diagnostics (newer than C3).
Compatibility
✔ Supports models up to ~2018:
W205 (C-Class), W222 (S-Class), W213 (E-Class).
❌ Limited Ethernet support (some 2019+ models may not work).
Limitations
Slower than C5/C6.
No full DoIP (Ethernet) diagnostics.
Officially discontinued by Mercedes-Benz.
3. MB SD Connect C5 (Improved Diagnostics)
MB STAR C5 Mercedes C5 Support wifi connection and latest Xentry SSD Software installed well in Mercedes C5.SD Connect C5 including DOIP protocol and work with new W222 Mercedes. MB Star C5 support online SCN coding with dealer account. It is much better to get a low cost MB Star C4.
Release Era: ~2018-2021.
Hardware: SD Connect C5 (faster than C4).
Software: Latest Xentry (supports CAN FD).
Compatibility
✔ Works with models up to ~2021:
W167 (GLE), V223 (S-Class), C238 (CLS).
✔ Partial Ethernet (DoIP) support.
Limitations
Not fully compatible with 2022+ models.
Replaced by C6 in official dealerships.

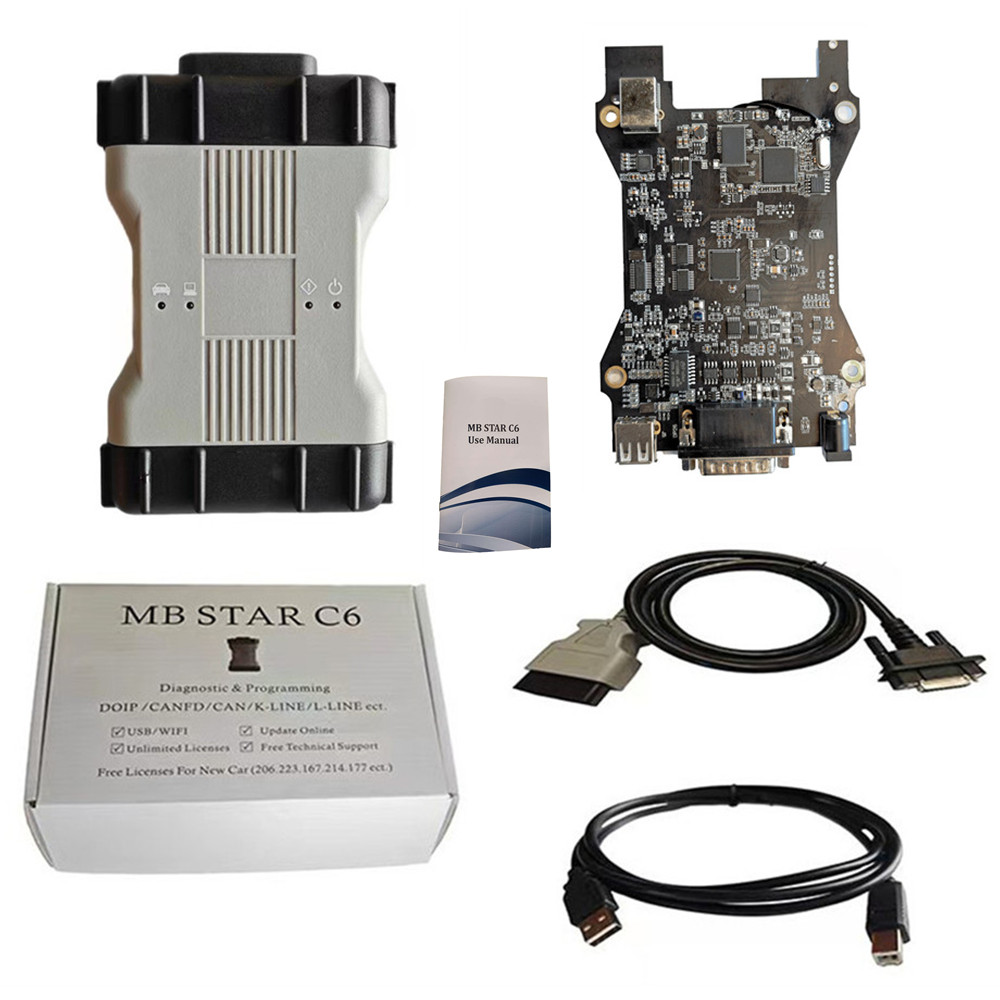

4. MB Star C6 with DOIP&AUDIO Function (Latest & Most Advanced)
Star Diagnosis MB STAR C6 VCI is the latest interface for For Mercedes & SMART vehicles can replace MB Star C4/C5 .SD Connect MB Star C6 Pass-through Interface support DOIP&AUDIO function and Support SCN Coding.Multi-language Star Diagnosis MB Star C6 work for Mercedes Benz & Smart vehicles up to 2018 year. But MB Star C6 software cannot support Vediamo and DTS Monaco for offline programming.
Release Era: 2021-Present.
Hardware: SD Connect C6 (supports high-speed DoIP).
Software: Full Xentry with online SCN coding.
Compatibility
✔ All Mercedes models (2024-2025 supported):
W206 (C-Class), W223 (S-Class), EQE/EQS (Electric).
✔ Full Ethernet (DoIP) & CAN FD support.
Advantages
Fastest diagnostics & programming.
Official tool for dealerships.
Works with all functions (coding, programming, guided tests).
Comparison Table: MB STAR C3 vs C4 vs C5 vs C6
| Feature |
MB STAR C3 |
SD Connect C4 |
SD Connect C5 |
SD Connect C6 |
| Release Year |
Pre-2015 |
2015-2018 |
2018-2021 |
2021-Present |
| Max Coverage |
Up to 2013 |
Up to 2018 |
Up to 2021 |
All models (2025+) |
| Ethernet (DoIP) |
❌ No |
❌ Limited |
✔️ Partial |
✔️ Full |
| SCN Coding |
Offline only |
Limited |
Better |
Full Online |
| Best For |
Classic MB (W203, W211) |
Mid-range (W205, W222) |
Newer (W213, W167) |
Latest (W223, EQ models) |
Which Benz scanners Should You Buy?
For classic cars (pre-2015): MB STAR C3 (budget-friendly).
For 2015-2018 models: MB SD Connect C4 (affordable).
For 2018-2021 models: MB SD Connect C5 (best value).
For 2020+ models: MB STAR C6 (must-have for latest cars).
Conclusion
The MB STAR C3, C4, C5, and C6 serve different diagnostic needs. While C3 is outdated, C4 and C5 work for mid-range models, and C6 is essential for modern Mercedes (including electric vehicles). Star Diagnosis MB Star C3 is old and Star C5 is very expensive, MB Star C6 quality is not good as Star C4,we recommend you to use the MB Star C4. MB Star C4 cover all the functions of MB Star C3 C5 C6 except the DOIP protocol. It is a value to own one.
