The GM Tech 2 is the essential diagnostic tool for GM, Saab, Isuzu, and Suzuki vehicles. However, due to its modular design, connection errors are common. If your device is failing to communicate or won't power up, the issue is likely a breach in the connection protocol.

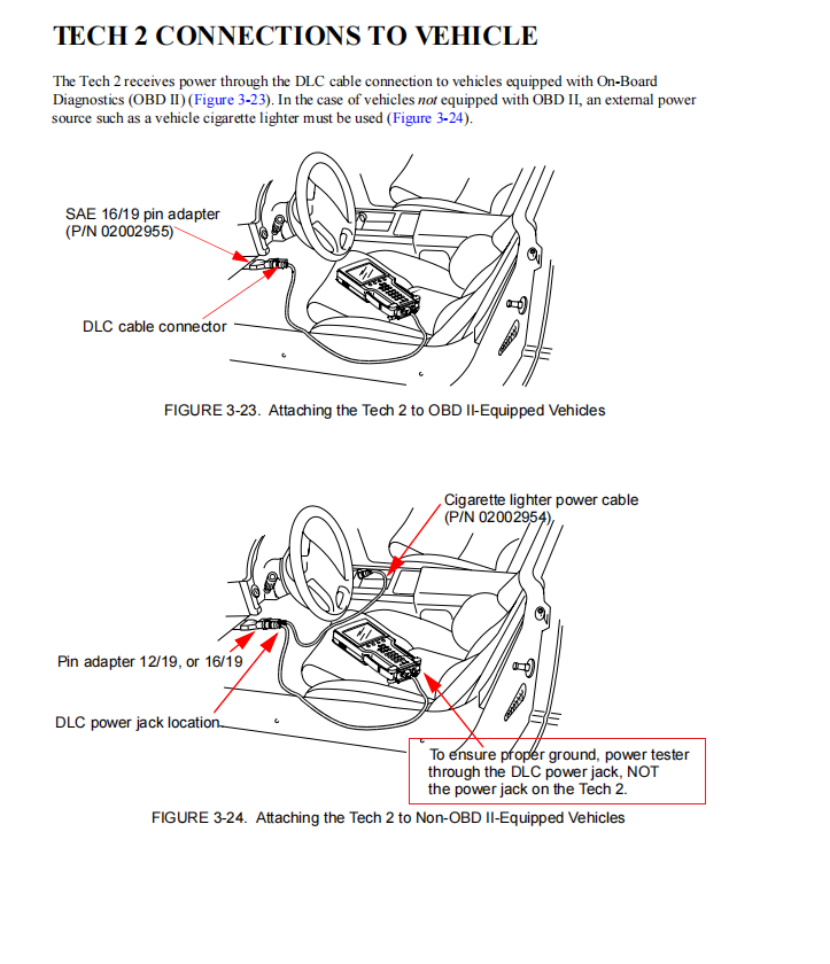

A frequent cause of hardware failure or data corruption is improper grounding. According to the technical manual, the power routing is specific:

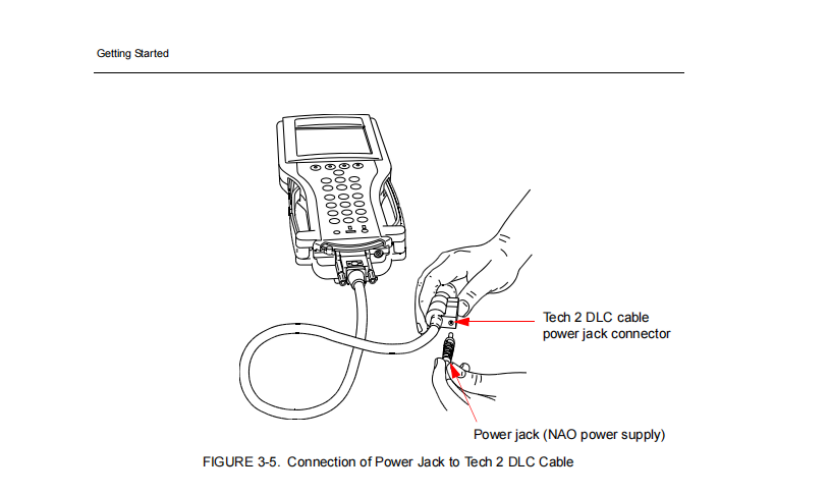

The DLC Power Jack: When using the NAO power supply or a cigarette lighter adapter, you must plug it into the power jack on the DLC cable, not the jack on the Tech 2 handheld unit itself.
Why it Matters: Powering through the cable ensures a common ground between the vehicle's ECU and the diagnostic tool, preventing "noise" that disrupts communication.
If your Tech 2 powers on but displays a "No Communication" error, follow these three steps to isolate the hardware:
The VCI (Vehicle Communication Interface) is the removable module at the base of the unit. Over time, the internal 26-pin connector can vibrate loose.
The Fix: Power off the unit, loosen the mounting screws, pull the VCI out completely, and re-insert it firmly.
The best way to determine if your Tech 2 DLC cable (P/N 02002952) is broken is to use the DLC Loopback Adapter (P/N 02002953).
Attach the adapter to the end of the DLC cable.
Navigate to the Tool Options > Self Test menu.
If the test fails, your cable or VCI module requires repair.
The Tech 2 draws its primary power from Pin 16 of the OBD II port. This pin is almost always on the same circuit as the vehicle's Cigarette Lighter or Auxiliary Power fuse. If your tool won't turn on when plugged into the car, check that fuse first.
| Component | Part Number | Usage |
| DLC Cable | 02002952 | Main connection between Tech 2 and adapters |
| Loopback Adapter | 02002953 | Used for internal hardware self-testing |
| Cigarette Lighter Cable | 02002954 | Required for power on non-OBD II vehicles |
| SAE 16/19 Adapter | 02002955 | Standard OBD II vehicle interface |
Q: Can I plug my Tech 2 directly into a 110V/220V wall outlet?
A: Yes, but only for software updates or viewing stored data. For vehicle diagnostics, always use the vehicle's power or the cigarette lighter adapter connected to the DLC cable to ensure proper grounding.
Q: My Tech 2 screen is blank, but it beeps when I turn it on. What’s wrong?
A: This is usually a failed DC-DC converter or a dead CCFL backlight. Try adjusting the contrast using the keypad arrows immediately after the startup beep. If the screen remains dark, the internal power board may need service.
Q: Does the Tech 2 work on 24V heavy-duty trucks?
A: No. The Tech 2 is designed for 12V systems. Connecting it to a 24V system without a voltage reducer will likely blow the internal DC-DC converter chip.
Q: Why does my Tech 2 lose power when I crank the engine?
A: This happens if the vehicle's battery voltage drops below 8V during cranking. Use the cigarette lighter power cable to provide a constant power source that isn't interrupted by the starter motor.
